CS43-4X4 Couplamatic VARI-CRIMP Coupling - BSPP - British Standard Parallel 60° Cone - 45° Bend Female Swivel - 1/4" Hose ID - G-1/4-19 Thread - 1/4" BSPP (Old Part Number: 4P44V)

CS43-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x G-1/4-19 Thread 60° Cone Female Swivel | 1/4" BSPP | 45° Elbow | Trivalent Zinc Plating | Replaces: 4P44V

Save $7.15

$17.87

$17.87 - $17.87

$17.87

$10.72

$10.72 - $10.72

$10.72

Couplamatic Systems Inc.
Vari-Crimp Couplings - BSPP - British Standard Parallel 60° Cone - 45° Bend Female Swivel

Specifications for Variant SKU: CS43-4X4 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Female BSPP, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating. G. as part of thread size is ISO designation for parallel thread.

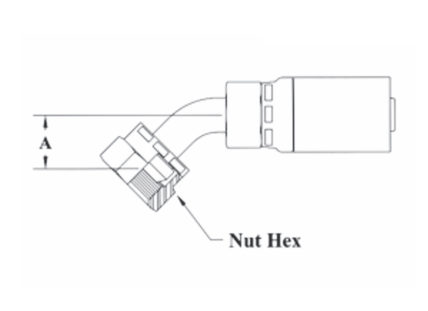

Part Number	Hose ID	BSPP Size	Thread Size	A-Drop Inches	Nut Hex	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	BSPP Size	Thread Size	A-Drop Inches	Nut Hex	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS43-4X4	1/4"	1/4"	G-1/4-19	0.91"	3/4"	4P44V	HY04-04BPF45T	1B1HY-4-4	04U-44P
CS43-6X6	3/8"	3/8"	G-3/8-19	0.90"	7/8"	6P46V	HY06-06BPF45T	1B1HY-6-6	06U-46P
CS43-8X8	1/2"	1/2"	G-1/2-14	0.87"	1"	8P48V	HY08-08BPF45T	1B1HY-8-8	08U-48P
CS43-12X12	3/4"	3/4"	G-3/4-14	1.31"	1-1/4"	12P52V	HY12-12BPF45T	1B1HY-12-12	12U-52P

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
