CS50-16X16 Couplamatic VARI-CRIMP Coupling - Code 61 Split Flange - 45° Bend - 1" Hose ID - 1" Flange Size (Old Part Number: 16G46V)

CS50-16X16 by Couplamatic | VARI-CRIMP Coupling | 1" Hose ID x 1" Split Flange Size | Code 61 | 45° Elbow | Trivalent Zinc Plating | Replaces: 16G46V

Save $17.69

$44.22

$44.22 - $44.22

$44.22

$26.53

$26.53 - $26.53

$26.53

Couplamatic Systems Inc.
Vari-Crimp Couplings - Code 61 Split Flange - 45° Bend

Specifications for Variant SKU: CS50-16X16 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	45 Degree
Ends Configuration:	1in Code 61 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

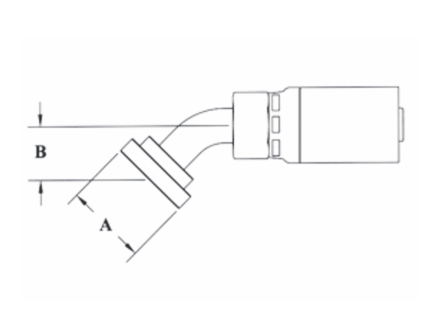

Part Number	Hose ID	Flange Size	A-Dia. Inches	B-Drop Inches	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Flange Size	A-Dia. Inches	B-Drop Inches	PreviousPart Number	Dayco HY	Parker HY
CS50-8X8	1/2"	1/2"	1.19"	0.78"	8G41V	HY08-08PA45	117HY-8-8	08U-G41
CS50-8X12	1/2"	3/4"	1.50"	0.82"	8G42V	-	-	-
CS50-12X12	3/4"	3/4"	1.50"	1.00"	12G42V	HY12-12PA45	117HY-12-12	12U-G42
CS50-12X16	3/4"	1"	1.75"	1.00"	12G46V	-	-	12U-G46
CS50-16X16	1"	1"	1.75"	1.12"	16G46V	HY16-16PA45	-	16U-G46
CS50-16X20	1"	1-1/4"	2.00"	1.12"	16G50V	-	-	16U-G50
CS50-20X20	1-1/4"	1-1/4"	2.00	1.12"	20G50V	-	-	20U-G50

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
