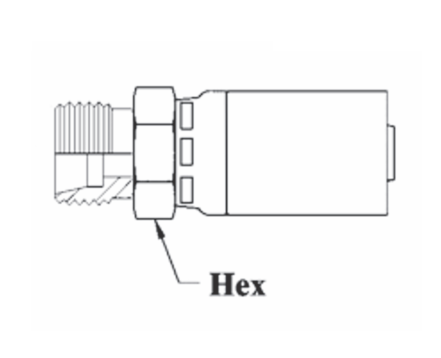

CS67-4X10 Couplamatic VARI-CRIMP Coupling - Din Heavy 24° Seat - Male Solid - 1/4" Hose ID - M18x1.5 Thread (Old Part Number: 4M60V)

CS67-4X10 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x M18x1.5 Thread Din Heavy 24° Seat Male Solid | Straight | Trivalent Zinc Plating | Replaces: 4M60V

Save $4.61 Save $4.61
$11.52
$11.52 - $11.52
$11.52
$6.91
$6.91 - $6.91
$6.91

Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Heavy 24° Seat - Male Solid
Specifications for Variant SKU: CS67-4X10 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: S10 Male DIN, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube Size Hex Size PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS67-4X8 1/4" M16x1.5 8mm 11/16" 4M58V HY04-08MZ16A 1D2HY-8-4 04U-08F
CS67-4X10 1/4" M18x1.5 10mm 3/4" 4M60V HY04-10MZ18A 1D0HY-10-4 04U-10F
CS67-6X10 3/8" M18x1.5 10mm 3/4" 6M60V HY06-10MZ18A - 06U-10F
CS67-6X12 3/8" M20x1.5 12mm 13/16" 6M62V HY06-12MZ20A 1D2HY-12-6 06U-12F
CS67-6X14 3/8" M22x1.5 14mm 7/8" 6M64V - - -
CS67-8X16 1/2" M24x1.5 16mm 7/8" 8M66V HY08-16MZ24A 1D2HY-16-8 08U-16F
CS67-10X20 5/8" M30x2.0 20mm 1-1/4" 10M70V - - -

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
