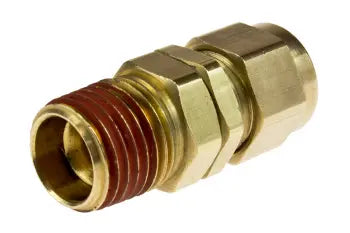

CSM0504 by Coilhose | Nylon Hose Fitting | Swivel Male | 5/16" Hose ID x 1/4" Male NPT Thread | Straight | Brass

Save $5.02

$12.55

$12.55 - $12.55

$12.55

$7.53

$7.53 - $7.53

$7.53

Coilhose Pneumatics - Coiled Hose - Nylon Hose Fittings - Swivel Male

Specifications for Variant SKU: CSM0504 Coilhose
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Swivel

Overview:
Coilhose Nylon Hose Fittings are designed for use with Coilhose Nylon Self-Storing Hose and STOWAWAY™ Heavy-Duty Nylon Air Hose. These fittings are machined from high quality brass hex stock to exacting standards.
Features:
Includes Fitting Nut Tube Insert Note: For high vibration applications, it is recommended that rigid fitting be installed at the working end. Brass Construction Swivel Fittings Feature Factory Applied Thread Sealant Made in USA

Part No	Hose I.D.	Fitting
CSM0202	1/8"	1/8" MPT
CSM0304	3/16"	1/4" MPT
CSM0404	1/4"	1/4" MPT
CSM0504	5/16"	1/4" MPT
CSM0604	3/8"	1/4" MPT
CSM0606	3/8"	3/8" MPT
CSM0808	1/2"	1/2" MPT
CSM1212	3/4"	3/4" MPT

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
