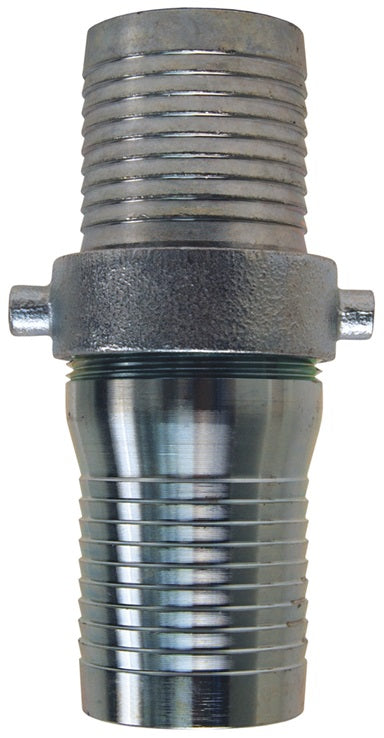

CSM250 by Dixon Valve | King Short Shank Suction Hose Coupling | Complete Coupling | 2-1/2" Male NPSM x 2-1/2" Female NPSM | Plated Steel Shank | Plated Iron Nut

Save $5.31

$62.76

$62.76 - $62.76

$62.76

$57.45

$57.45 - $57.45

$57.45

Dixon Valve
King Short Shank Suction Hose Coupling | Complete Coupling Set | Male NPSM x Female NPSM

For suction or discharge of water.

Quantity

Specifications for Variant SKU: CSM250 Dixon
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in Hose Barb, 2-1/2in Male NPSM, 2-1/2in Male NPSM, 2-1/2in Hose Barb, Some Ends Match
Material(s):	Plated Steel, Plated Iron
Seal Material(s):	Rubber
Special Properties:	Short

Features:
Complete couplings supplied with rubber gaskets.

Complete Coupling

Plated Steel Shank & Plated Iron Nut Complete Part Number	Size
CSM125	1-1/4"
CSM150	1-1/2"
CSM200	2"
CSM250	2-1/2"
CSM300	3"
CSM400	4"
CSM600	6"

Female Fitting

Plated Steel Shank & Plated Iron Nut Female Part Number	Size
FCSM125	1-1/4"
FCSM150	1-1/2"
FCSM200	2"
FCSM250	2-1/2"
FCSM300	3"
FCSM400	4"
FCSM600	6"

Male Fitting

Plated Steel Male Part Number	Size
MCS125	1-1/4"
MCS150	1-1/2"
MCS200	2"
MCS250	2-1/2"
MCS300	3"
MCS400	4"
MCS600	6"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
