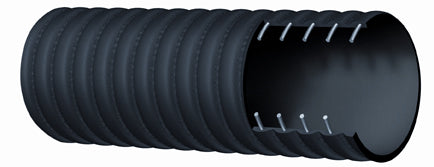

CT601AA400X100 Alfagomma by Kuriyama | CT601AA Series | Corrugated Oil Rigger/Oil Field-Frack Tank Hose | 4" ID | 4.49" OD | 150 PSI | Black | 100ft Length

CT601AA400X100 Alfagomma by Kuriyama | CT601AA Series | Corrugated Oil Rigger/Oil Field-Frack Tank Hose | 4" ID | 4.49" OD | 150 PSI | Black | 100ft Length

Save $719.43 Save $719.43
$2,526.32
$2,526.32 - $2,526.32
$2,526.32
$1,806.89
$1,806.89 - $1,806.89
$1,806.89

Kuriyama of America Inc.
Alfagomma | CT601AA Series | Corrugated Oil Rigger/Oil Field-Frack Tank Hose

For oil field vacuum tank service, for handling crude oil, frack solutions and slurries.

For applications up to 35% aromatics.

Package Quantity: 100 Foot

Specifications for Variant SKU: CT601AA400X100 Kuriyama | 100 |
Brand: Alfagomma
Series: CT601AA Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.49in
Tubing Construction: Nitrile/PVC Blend
Cover Construction: SBR

SPECIFICATIONS

Application: Oil field vacuum tank service, for handling crude oil, frack solutions and slurries.
Note: For applications up to 35% aromatics.
Not for use with refined petroleum products.
Other Ratings: - Tube: Black Nitrile - PVC blend, limited oil resistance, for oil field use.
Reinforcement: High tensile textile cords with flexible steel helix wire. Cover: Black corrugated SBR - abrasion, ozone, limited oil resistance.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting couplings or combination nipples attached with bands.
Branding: ALFAGOMMA - ITALY T6C1 10 BAR (150 PSI) OIL FIELD-FRACK TANK S & D (in blue letters)
Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
CT601AA200X100 2" 51mm 2.40" 61mm 150 PSI 30 in Hg 6" 0.86 lbs/ft
CT601AA300X100 3" 76mm 3.46" 88mm 150 PSI 27 in Hg 9" 1.61 lbs/ft
CT601AA400X100 4" 102mm 4.49" 114mm 150 PSI 27 in Hg 12" 2.39 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
