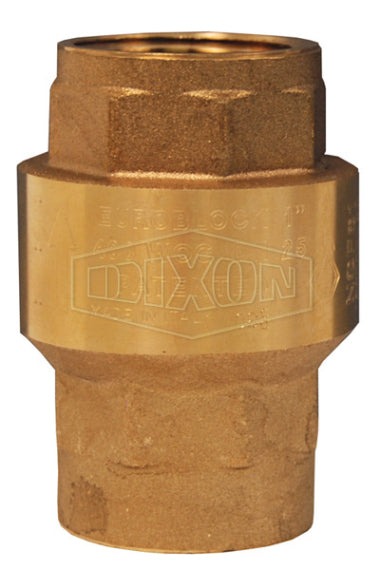

CV125 by Dixon Valve | Spring-Loaded Check Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | Brass

CV125 by Dixon Valve | Spring-Loaded Check Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | Brass

Save $4.01 Save $4.01
$42.90
$42.90 - $42.90
$42.90
$38.89
$38.89 - $38.89
$38.89

Dixon Valve & Coupling
Spring-Loaded Check Valves
Specifications for Variant SKU: CV125 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s): Brass
Features:
  • Soft seat for bubble tight shutoff, spring loaded for fast seating action.
  • Flow profile designed to minimize head loss.
Materials:
  • NBR seat.
Specifications:
  • Pressure rating :1/2" - 2" 400 PSI WOG; 3" - 4" 175 PSI WOG
  • Temperature range: 10°F to 210°F (-10°C to 100°C)
  • Cracking pressure: 0.50 PSI
Part Number Female NPT x Female NPT
CV050 1/2" x 1/2"
CV075 3/4" x 3/4"
CV100 1" x 1"
CV125 1-1/4" x 1-1/4"
CV150 1-1/2" x 1-1/2"
CV200 2" x 2"
CV300 3" x 3"
CV400 4" x 4"
