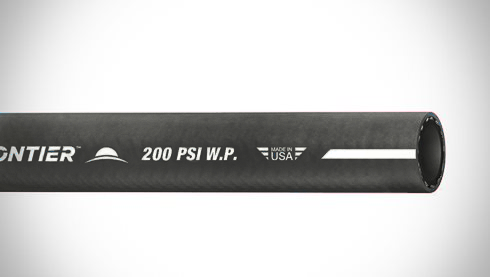

20025714 Frontier™ by ContiTech | Air / Multipurpose Hose | Continental | 1.00" (1") ID | 200 PSI | Black | 450ft

$1,638.87 - $1,638.87

$1,638.87

$1,662.84

$1,662.84 - $1,662.84

$1,662.84

Continental ContiTech Frontier™ 200 Air & Multipurpose Hose

An economical air and water hose, Frontier™ is for a wide range of industrial, construction and agricultural applications.

Package Quantity: 450 FT

Quantity

Specifications for Variant SKU: 20025714 ContiTech \| 450 \|
Brand:	Frontier 200
Series:	Frontier 200
Hose Color(s):	Black
Internal Diameter:	1in
Outer Diameter:	1.44in
Tubing Construction:	EPDM
Cover Construction:	EPDM

Application:	Air, water, industrial, construction, agricultural applications.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	EPDM synthetic rubber, ARPM Class C (Limited Oil Resistance)
Reinforcement:	Spiral synthetic yarn, 2" is braided	Cover:	Black, Red, Yellow, Green or Blue EPDM synthetic rubber Class C (Limited Oil Resistance)
Temperature Range:	-40°F to 210°F (-40°C to 99°C)	Fittings:	N/A
Branding:	1/2" Frontier™ Continental ContiTech 300 psi WP

Black Part Number	Red Part Number	Blue Part Number	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Weight		Black Order Code	Red Order Code	Blue Order Code	Yellow Order Code
Black Part Number	Red Part Number	Blue Part Number	in.	mm	in.	mm	PSI	MPa	lb./ft.	kg/m	Black Order Code	Red Order Code	Blue Order Code	Yellow Order Code
20025544	-	-	3/16"	4.8mm	0.44"	11.2mm	200 PSI	1.38 MPa	0.08 lbs./ft.	0.12 kg/m	56900904800200	-	-	-
20025553	20025735	-	1/4"	6.4mm	0.50"	12.7mm	200 PSI	1.38 MPa	0.09 lbs./ft.	0.13 kg/m	56900906400200	56901106400200	56954706400200	-
-	20025748	-	5/16"	7.9mm	0.58"	14.7mm	200 PSI	1.38 MPa	0.12 lbs./ft.	0.18 kg/m	56900907900200	56901107900200	56954707900200	-
20025572	20025750	-	3/8"	9.5mm	0.67"	17.0mm	200 PSI	1.38 MPa	0.15 lbs./ft.	0.22 kg/m	56900909500200	56901109500200	-	56903809500200
20025591	20025773	20026921	1/2"	12.7mm	0.81"	20.6mm	200 PSI	1.38 MPa	0.20 lbs./ft.	0.30 kg/m	56900912700200	56901112700200	56954712700200	56903812700200
20025610	20025787	20026923	5/8"	15.9mm	0.97"	24.6mm	200 PSI	1.38 MPa	0.27 lbs./ft.	0.40 kg/m	56900915900200	56901115900200	56954715900200	-
20025619	20025799	20026925	3/4"	19.1mm	1.12"	28.5mm	200 PSI	1.38 MPa	0.34 lbs./ft.	0.51 kg/m	56900919100200	56901119100200	56954719100200	56903819100200
20025714	20025966	-	1"	25.4mm	1.44"	36.8mm	200 PSI	1.38 MPa	0.54 lbs./ft.	0.80 kg/m	56901025400200	56901225400200	56954725400200	56903825400200
20025649	20025826	-	1-1/4"	31.8mm	1.73"	44.0mm	200 PSI	1.38 MPa	0.75 lbs./ft.	1.12 kg/m	56900931800200	56901131800200	-	56903831800200
20025655	20025834	-	1-1/2"	38.1mm	1.98"	50.3mm	200 PSI	1.38 MPa	0.68 lbs./ft.	1.28 kg/m	56900938100200	56901138100200	-	56903838100200
20022897	20022939	-	2"	50.8mm	2.50"	63.5mm	200 PSI	1.38 MPa	1.16 lbs./ft.	1.73 kg/m	53603506400300	53604006400300	-	-

Red Part Number	Coupling Type	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Length	Weight		Red Order Code
Coupled Lengths
Red Part Number	Coupling Type	in.	mm	in.	mm	PSI	MPa	Length	lb./ft.	kg/m	Red Order Code
20129541	1/4" Male NPT x 1/4" Male NPT	1/4"	6.4mm	0.50"	12.7mm	200 PSI	1.38 MPa	25ft	0.09 lbs./ft.	0.13 kg/m	56901106412501
20132830	1/4" Male NPT x 1/4" Male NPT	1/4"	6.4mm	0.50"	12.7mm	200 PSI	1.38 MPa	50ft	0.09 lbs./ft.	0.13 kg/m	56901106453301
20129680	1/4" Male NPT x 1/4" Male NPT	3/8"	9.5mm	0.67"	17.0mm	200 PSI	1.38 MPa	25ft	0.15 lbs./ft.	0.22 kg/m	56901109522501
20132831	1/4" Male NPT x 1/4" Male NPT	3/8"	9.5mm	0.67"	17.0mm	200 PSI	1.38 MPa	50ft	0.15 lbs./ft.	0.22 kg/m	56901109553301

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
