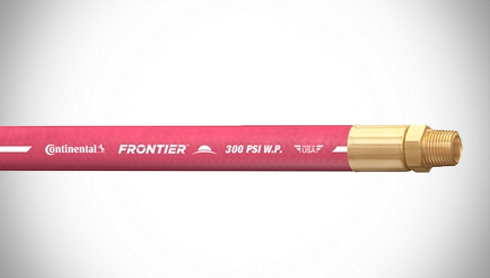

20147628 Frontier™ by ContiTech | 300 Air / Multipurpose Hose | Continental | 0.375" (3/8") ID | 1/4" Male NPT x 1/4" Male NPT | 300 PSI | Red | 100ft

20147628 Frontier™ by ContiTech | 300 Air / Multipurpose Hose | Continental | 0.375" (3/8") ID | 1/4" Male NPT x 1/4" Male NPT | 300 PSI | Red | 100ft

Save $112.16 Save $112.16
$280.40
$280.40 - $280.40
$280.40
$168.24
$168.24 - $168.24
$168.24

Continental ContiTech Frontier™ 300 Air & Multipurpose Hose

An economical air and water hose, Frontier™ is for a wide range of industrial, construction and agricultural applications.
Specifications for Variant SKU: 20147628 ContiTech
Brand: Frontier 300
Series: Frontier 300
Hose Color(s): Red
Internal Diameter: 0.375in
Outer Diameter: 0.70in
Tubing Construction: EPDM
Cover Construction: EPDM
Ends Configuration: Some Ends Match, 1/4in Male NPT, 1/4in Male NPT

SPECIFICATIONS

Application: Air, water, industrial, construction, agricultural applications. SAE Rating: N/A
Other Ratings: N/A Tube: EPDM synthetic rubber, ARPM Class C (Limited Oil Resistance)
Reinforcement: Spiral synthetic yarn, 2" is braided Cover: Black, Red, Yellow, Green or Blue EPDM synthetic rubber Class C (Limited Oil Resistance)
Temperature Range: -40°F to 210°F (-40°C to 99°C) Fittings: N/A
Branding: 1/2" Frontier™ Continental ContiTech 300 psi WP
Red
Part Number		 Yellow
Part Number		 Green
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Red
Order Code		 Yellow
Order Code		 Green
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20026960 - - 1/4" 6.4mm 0.53" 13.5mm 300 PSI 2.07 MPa 500ft 0.10 lbs./ft. 0.15 kg/m 56955706400200 - -
20026967 - - 5/16" 6.40mm 0.53" 13.40mm 300 PSI 2.07 MPa 500ft 0.161 lbs./ft. - 56955707900200 - -
20026971 20127382 - 3/8" 9.5mm 0.70" 17.8mm 300 PSI 2.07 MPa 500ft 0.17 lbs./ft. 0.25 kg/m 56955709500200 56951609500200 -
20026980 20127385 - 1/2" 12.7mm 0.84" 21.3mm 300 PSI 2.07 MPa 500ft 0.22 lbs./ft. 0.33 kg/m 56955712700200 56951612700200 -
20026985 20026845 20048519 3/4" 19.1mm 1.15" 29.2mm 300 PSI 2.07 MPa 500ft 0.37 lbs./ft. 0.55 kg/m 56955719100200 56951619100200 56956019100200
20026992 20026859 20048546 1" 25.4mm 1.48" 37.3mm 300 PSI 2.07 MPa 450ft 0.58 lbs./ft. 0.86 kg/m 56955725400200 56951625400200 56956025400200
Coupled Lengths
Red
Part Number		 Coupling Length Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Weight Red
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20147625 1/4" Male NPT x 1/4" Male NPT 50ft 1/4" 6.4mm 0.53" 13.5mm 300 PSI 2.07 MPa 0.10 lbs./ft. 0.15 kg/m 56955706450301
20147626 1/4" Male NPT x 1/4" Male NPT 100ft 56955706450601
20134965 1/4" Male NPT x 1/4" Male NPT 25ft 3/8" 9.5mm 0.70" 17.8mm 300 PSI 2.07 MPa 0.17 lbs./ft. 0.25 kg/m 56955709532501
20147627 1/4" Male NPT x 1/4" Male NPT 50ft 56955709550901
20147628 1/4" Male NPT x 1/4" Male NPT 100ft 56955709551201
20147629 1/2" Male NPT x 1/2" Male NPT 50ft 1/2" 12.7mm 0.84" 21.3mm 300 PSI 2.07 MPa 0.22 lbs./ft. 0.33 kg/m 56955712751501
20147650 1/2" Male NPT x 1/2" Male NPT 100ft 56955712751801

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
