20022597 Insta-Grip™ by ContiTech | TC Push-On Air / Multipurpose Hose | Continental | 0.375" (3/8") ID | 300 PSI | Black | 500ft

20022597 Insta-Grip™ by ContiTech | TC Push-On Air / Multipurpose Hose | Continental | 0.375" (3/8") ID | 300 PSI | Black | 500ft

$1,795.70 - $1,795.70
$1,795.70
$1,818.67
$1,818.67 - $1,818.67
$1,818.67

Continental ContiTech Insta-Grip™ TC Push-on Air & Multipurpose Hose

For low-pressure hydraulic and pneumatic systems such as shop air systems, general industrial, maintenance and automotive assembly applications.

Package Quantity: 500 FT

Specifications for Variant SKU: 20022597 ContiTech | 500 |
Brand: Insta-Grip TC
Series: Insta-Grip TC
Hose Color(s): Black
Internal Diameter: 0.375in
Outer Diameter: 0.64in
Tubing Construction: Synthetic Rubber
Cover Construction: Textile Braid

SPECIFICATIONS

Application: Low-pressure hydraulic, pneumatic systems, shop air systems, general industrial, maintenance, automotive assembly. SAE Rating: N/A
Other Ratings: N/A Tube: Chemivic oil and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: One braided high-strength synthetic yarn laid at an angle for strength and coupling holding ability Cover: Black, dyed textile braid, mildew and oil-resistant
Temperature Range: -40°F to 210°F (-40°C to 99°C) Fittings: N/A

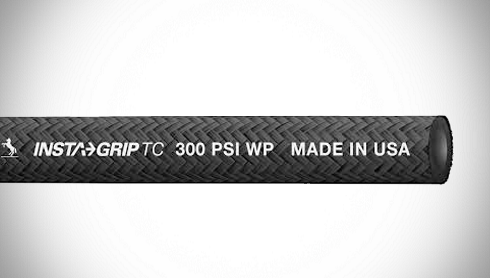

Branding: Insta-Grip™ TC 3/8" 300 psi WP Made in USA Continental ContiTech
Black
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Bend
Radius		 Length Weight Black
Order Code
in. mm in. mm PSI MPa in. mm lb./ft. kg/m
20022593 1/4" 6.4mm 0.50" 12.7mm 300 PSI 2.07 MPa 3" 64mm 500ft 0.08 lbs./ft. 0.12 kg/m 53523000800400
20022595 5/16" 7.9mm 0.56" 14.2mm 300 PSI 2.07 MPa 3" 76mm 500ft 0.09 lbs./ft. 0.13 kg/m 53523001000400
20022597 3/8" 9.5mm 0.64" 16.3mm 300 PSI 2.07 MPa 3" 76mm 500ft 0.11 lbs./ft. 0.16 kg/m 53523001200400
20022600 1/2" 12.7mm 0.75" 19.1mm 300 PSI 2.07 MPa 5" 127mm 500ft 0.13 lbs./ft. 0.19 kg/m 53523001600400
20022602 5/8" 15.9mm 0.91" 23.1mm 300 PSI 2.07 MPa 6" 152mm 500ft 0.19 lbs./ft. 0.28 kg/m 53523002000400
20022604 3/4" 19.1mm 1.03" 26.2mm 300 PSI 2.07 MPa 7" 178mm 500ft 0.21 lbs./ft. 0.31 kg/m 53523002400400

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
