ContiTech Plicord® Air 400 Heavy Duty Air / Multipurpose Hose - 0.50" (1/2") ID - 400 PSI - Green - 20018818 Goodyear/Continental - 100ft

20018818 Plicord® by ContiTech | Air 400 Heavy Duty Air / Multipurpose Hose | Continental | 0.50" (1/2") ID | 400 PSI | Green | 100ft

Minimum Order Quantity: 4 Sections

Save $398.45

$996.13

$996.13 - $996.13

$996.13

$597.68

$597.68 - $597.68

$597.68

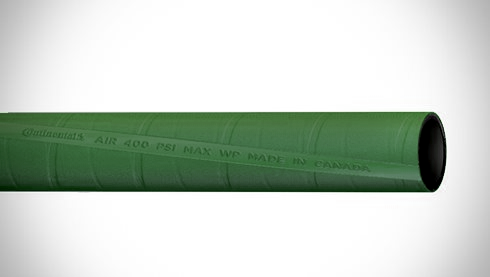

Continental ContiTech Plicord® Air 400 Heavy Duty Air & Multipurpose Hose

A versatile, heavy-duty air hose for use in rough industrial applications or for severe service in mines, quarries and construction jobs.

Package Quantity: 100 FT

Specifications for Variant SKU: 20018818 ContiTech \| 100 \|
Brand:	Plicord Air
Series:	Plicord Air
Hose Color(s):	Green
Internal Diameter:	0.50in
Outer Diameter:	0.88in
Tubing Construction:	SBR
Cover Construction:	SBR

Application:	Rough industrial applications, severe service in mines, quarries and construction jobs.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black SBR synthetic rubber, ARPM Class C (Limited Oil Resistance) (non-conductive)
Reinforcement:	Spiral-plied synthetic fabric	Cover:	Green SBR synthetic rubber (wrapped impression), ARPM Class C (Limited Oil Resistance)
Temperature Range:	-25°F to 180°F (-32°C to 82°C)	Fittings:	N/A
Branding:	Continental ContiTech Plicord® Air 400 psi WP

Green Part Number	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Length	Weight		Green Order Code
Green Part Number	in.	mm	in.	mm	PSI	MPa	Length	lb./ft.	kg/m	Green Order Code
20018818	1/2"	12.7mm	0.88"	22.4mm	400 PSI	2.76 MPa	100ft	0.23 lbs./ft.	0.34 kg/m	54900601601000
20018820	3/4"	19.1mm	1.23"	31.2mm	400 PSI	2.76 MPa	100ft	0.45 lbs./ft.	0.67 kg/m	54900602401000
20018823	1"	25.4mm	1.50"	38.1mm	400 PSI	2.76 MPa	100ft	0.58 lbs./ft.	0.86 kg/m	54900603201000
20018828	1-1/2"	38.1mm	2.04"	51.8mm	400 PSI	2.76 MPa	100ft	0.86 lbs./ft.	1.28 kg/m	54900604801000
20018830	2"	50.8mm	2.55"	64.7mm	400 PSI	2.76 MPa	100ft	1.11 lbs./ft.	1.65 kg/m	54900606401000
20018832	3"	76.2mm	3.70"	94.0mm	400 PSI	2.76 MPa	100ft	2.14 lbs./ft.	3.18 kg/m	54900610701000

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
