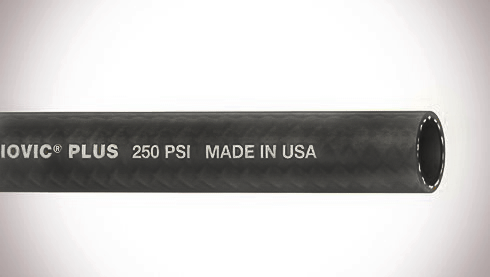

20012696 Pliovic® by ContiTech | Plus 250 Air / Multipurpose Hose | Continental | 0.25" (1/4") ID | 250 PSI | Black | 750ft

$465.00 - $465.00

$465.00

$474.30

$474.30 - $474.30

$474.30

Continental ContiTech Pliovic® Plus 250 Air & Multipurpose Hose

A lightweight, economical general purpose hose for carrying air, water and many spray solutions, Pliovic® is suitable for a wide range of industrial, construction, agricultural hand sprayers and many multipurpose applications. Nonconductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC.

Package Quantity: 750 FT

Quantity

Specifications for Variant SKU: 20012696 ContiTech \| 750 \|
Brand:	Pliovic Plus 250
Series:	Pliovic Plus 250
Hose Color(s):	Black
Internal Diameter:	0.25in
Outer Diameter:	0.50in
Tubing Construction:	Special Proprietary
Cover Construction:	Special Proprietary

SPECIFICATIONS

Application:	Air, water and spray solutions in industrial, construction, and agricultural industries.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black Pliovic®, ARPM Class B (Medium Oil Resistance)
Reinforcement:	Spiral synthetic yarn	Cover:	Pliovic®, thick smooth finish, ARPM Class B (Medium Oil Resistance)
Temperature Range:	-10°F to 158°F (-23°C to 70°C)	Fittings:	N/A
Branding:	Pliovic® Plus 3/8" ID (9.5 mm) 250 psi WP. Made in USA. ContiTech

Blue Part Number	Red Part Number	Green Part Number	Black Part Number	Yellow Part Number	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Length	Weight		Blue Order Code	Red Order Code	Green Order Code	Black Order Code	Yellow Order Code
Blue Part Number	Red Part Number	Green Part Number	Black Part Number	Yellow Part Number	in.	mm	in.	mm	PSI	MPa	Length	lb./ft.	kg/m	Blue Order Code	Red Order Code	Green Order Code	Black Order Code	Yellow Order Code
20012644	20012588	20012688	20012696	20012742	1/4"	6.4mm	0.50"	12.7mm	250 PSI	1.72 MPa	750ft	0.08 lbs./ft.	0.12 kg/m	54022700800002	54020100800002	54023200800002	54023300800002	54025700800002
20012651	20012594	20012689	20012700	20012746	3/8"	9.5mm	0.66"	16.8mm	250 PSI	1.72 MPa	750ft	0.13 lbs./ft.	0.19 kg/m	54022701200002	54020101200002	54023201200002	54023301200002	54025701200002
20012668	20012605	20012691	20012703	20012755	1/2"	12.7mm	0.81"	20.6mm	250 PSI	1.72 MPa	750ft	0.17 lbs./ft.	0.25 kg/m	54022701600002	54020101600002	54023201600002	54023301600002	54025701600002
20012677	20012609	20012692*	20012704	20753492	5/8"	15.9mm	0.94"	23.9mm	250 PSI	1.72 MPa	500ft	0.20 lbs./ft.	0.30 kg/m	54022702000002	54020102000002	54023202000002	54023302000002	54025702030002
20012678	20012610	20012694	20012705	20012756	3/4"	19.1mm	1.11"	28.2mm	250 PSI	1.72 MPa	450ft	0.28 lbs./ft.	0.42 kg/m	54022702400002	54020102400002	54023202400002	54023302400002	54025702400002
20012680	20012615	20012695	20012707	20012758	1"	25.4mm	1.38"	35.1mm	200 PSI	1.38 MPa	400ft	0.37 lbs./ft.	0.55 kg/m	54022703200002	54020103200002	54023203200002	54023303200002	54025703200002

*750ft

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
