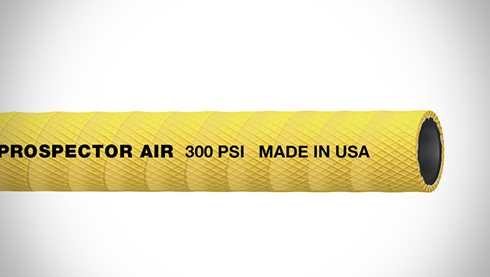

20070687 Prospector™ by ContiTech | Air Heavy Duty Air / Multipurpose Hose | Continental | 0.50" (1/2") ID | 300 PSI | Yellow | 50ft

20070687 Prospector™ by ContiTech | Air Heavy Duty Air / Multipurpose Hose | Continental | 0.50" (1/2") ID | 300 PSI | Yellow | 50ft

Save $100.58 Save $100.58
$251.45
$251.45 - $251.45
$251.45
$150.87
$150.87 - $150.87
$150.87

Continental ContiTech Prospector™ Plus Heavy Duty Air & Multipurpose Hose

A versatile, heavy-duty air hose for mining, construction and industrial applications.

Package Quantity: 50 FT

Specifications for Variant SKU: 20070687 ContiTech | 50 |
Brand: Prospector
Series: Prospector
Hose Color(s): Yellow
Internal Diameter: 0.50in
Outer Diameter: 0.89in
Tubing Construction: EPDM
Cover Construction: EPDM

SPECIFICATIONS

Application: Mining, construction and industrial applications. SAE Rating: N/A
Other Ratings: N/A Tube: 1/2" - 1": Black EPDM synthetic rubber, ARPM Class C (Limited Oil Resistance)
1-1/4" - 3": Black SBR synthetic rubber, ARPM Class C (Limited Oil Resistance)
Reinforcement: 1/2"-1": One braided synthetic yarn
1-1/4"-3": Spiral-plied synthetic fabric		 Cover: Yellow EPDM synthetic rubber (wrapped impression), ARPM Class C (Limited Oil Resistance)
Temperature Range: -40°F to 220°F (-40°C to 104°C) Fittings: N/A
Branding: 1" 24.4 mm Prospector™ Air 300 psi 2.1 MPa WP
Yellow
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Yellow
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20070687 1/2" 12.7mm 0.89" 22.6mm 300 PSI 2.07 MPa 50ft 0.24 lbs./ft. 0.36 kg/m 53650901605000
20070736 3/4" 19.1mm 1.19" 30.2mm 300 PSI 2.07 MPa 50ft 0.37 lbs./ft. 0.55 kg/m 53650902405000
20070739 1" 25.4mm 1.49" 37.9mm 300 PSI 2.07 MPa 50ft 0.53 lbs./ft. 0.79 kg/m 53650903205000
20020467 1-1/4" 31.8mm 1.66" 42.2mm 300 PSI 2.07 MPa 50ft 0.58 lbs./ft. 0.86 kg/m 54994304000500
20020471 1-1/2" 38.1mm 2.01" 51.1mm 300 PSI 2.07 MPa 50ft 0.83 lbs./ft. 1.24 kg/m 54994304800500
20020475 2" 50.8mm 2.57" 65.3mm 300 PSI 2.07 MPa 50ft 1.20 lbs./ft. 1.79 kg/m 54994306400500

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
