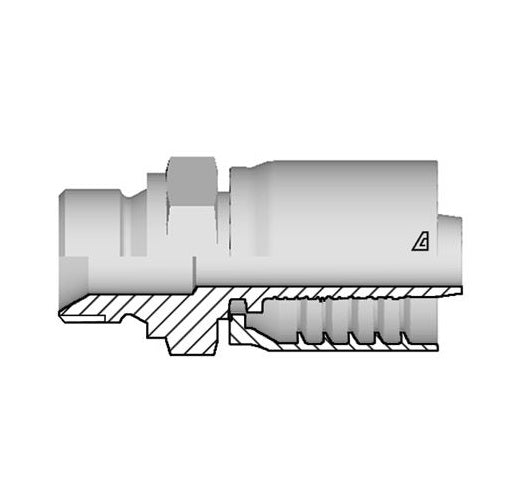

D-0606-MBPP Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Hose ID x -06 Male BSPP 60° Seat | Steel

D-0606-MBPP Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Hose ID x -06 Male BSPP 60° Seat | Steel

Save $3.54 Save $3.54
$12.40
$12.40 - $12.40
$12.40
$8.86
$8.86 - $8.86
$8.86

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male BSPP 60° Seat
Specifications for Variant SKU: D-0606-MBPP Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 3/8in Male BSPP
Material(s): Steel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
D-0606-MBPP 06 3/8" 9.5mm 06 3/8-19 27.8mm 22mm 0.22 lbs
D-0608-MBPP 06 3/8" 9.5mm 08 1/2-14 31.3mm 27mm 0.29 lbs
D-0806-MBPP 08 1/2" 12.7mm 06 3/8-19 28.6mm 22mm 0.27 lbs
D-0808-MBPP 08 1/2" 12.7mm 08 1/2-14 32.1mm 27mm 0.34 lbs
D-0810-MBPP 08 1/2" 12.7mm 10 5/8-14 36.1mm 30mm 0.40 lbs
D-0812-MBPP 08 1/2" 12.7mm 12 3/4-14 34.1mm 32mm 0.41 lbs
D-1010-MBPT 10 5/8" 15.9mm 10 5/8-14 36.1mm 30mm 0.44 lbs
D-1012-MBPT 10 5/8" 15.9mm 12 3/4-14 34.1mm 32mm 0.47 lbs
D-1212-MBPP 12 3/4" 19.0mm 12 3/4-14 34.6mm 32mm 0.55 lbs
D-1216-MBPP 12 3/4" 19.0mm 16 1-11 39.6mm 41mm 0.77 lbs
D-1616-MBPP 16 1" 25.4mm 16 1-11 40.4mm 41mm 1.01 lbs
D-1620-MBPP 16 1" 25.4mm 20 1-1/4-11 42.4mm 50mm 1.25 lbs
D-2020-MBPP 20 1-1/4" 31.8mm 20 1-1/4-11 48.0mm 50mm 1.48 lbs
D-3232-MBPP 32 2" 50.8mm 32 2-11 53.5mm 70mm 3.02 lbs
