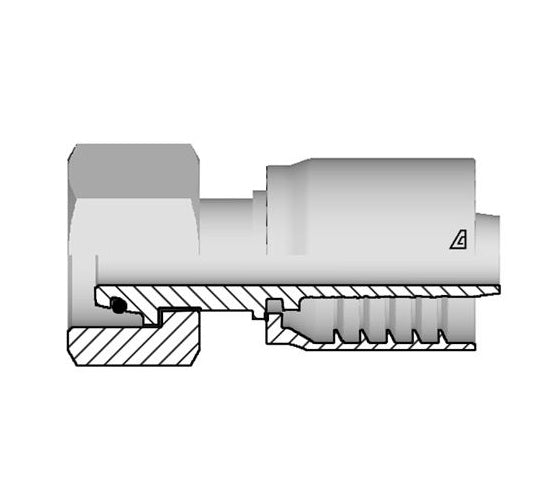

D-0620-FMOH Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | -06 Hose ID x M20 Female Metric Swivel O-Ring 24° Seat | Steel

D-0620-FMOH Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | -06 Hose ID x M20 Female Metric Swivel O-Ring 24° Seat | Steel

Save $4.20 Save $4.20
$14.70
$14.70 - $14.70
$14.70
$10.50
$10.50 - $10.50
$10.50

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | Hose Barb x Female Metric Swivel O-Ring 24° Seat
Specifications for Variant SKU: D-0620-FMOH Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Material(s): Steel
Applicable Specs & Approvals: DIN 3865
Special Properties: Swivel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Tube OD C
Cut-Off Factor		 CH2 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(mm) x TP (mm)		 (mm) (mm) (mm) lbs/each
D-0620-FMOH 06 3/8" 9.5mm 20 M20x1.5 12mm 27.6mm 24mm 0.25 lbs
D-0622-FMOH 06 3/8" 9.5mm 22 M22x1.5 14mm 31.1mm 27mm 0.31 lbs
D-0824-FMOH 08 1/2" 12.7mm 24 M24x1.5 16mm 31.7mm 30mm 0.40 lbs
D-1030-FMOH 10 5/8" 15.9mm 30 M30x2 22mm 36.5mm 36mm 0.59 lbs
D-1236-FMOH 12 3/4" 19.0mm 36 M36x2 28mm 40.2mm 46mm 0.99 lbs
D-1642-FMOH 16 1" 25.4mm 42 M42x2 30mm 43.1mm 50mm 1.40 lbs
D-2052-FMOH 20 1-1/4" 31.8mm 52 M52x2 38mm 48.1mm 60mm 2.04 lbs
