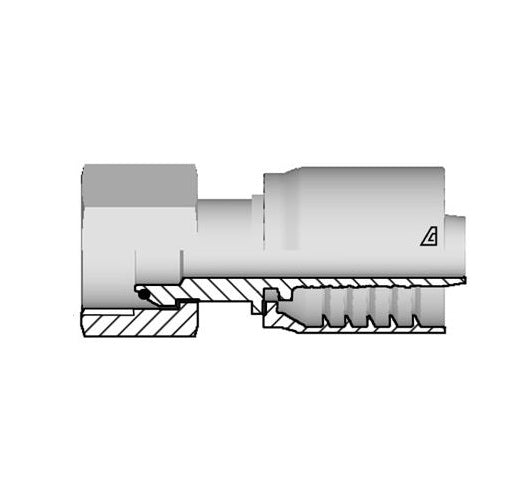

D-1010-FBPO Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -10 Hose ID x -10 Female BSPP O-Ring Swivel 60° Cone | Steel

D-1010-FBPO Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -10 Hose ID x -10 Female BSPP O-Ring Swivel 60° Cone | Steel

Save $7.22 Save $7.22
$25.28
$25.28 - $25.28
$25.28
$18.06
$18.06 - $18.06
$18.06

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female BSP O-Ring Swivel 60° Cone
Specifications for Variant SKU: D-1010-FBPO Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH2 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
D-0606-FBPO 06 3/8" 9.5mm 06 3/8-19 17.0mm 22mm 0.21 lbs
D-0608-FBPO 06 3/8" 9.5mm 08 1/2-14 17.0mm 27mm 0.26 lbs
D-0808-FBPO 08 1/2" 12.7mm 08 1/2-14 18.0mm 27mm 0.30 lbs
D-0810-FBPO 08 1/2" 12.7mm 10 5/8-14 28.4mm 27mm 0.35 lbs
D-0812-FBPO 08 1/2" 12.7mm 12 3/4-14 22.0mm 32mm 0.36 lbs
D-1010-FBPO 10 5/8" 15.9mm 10 5/8-14 17.1mm 27mm 0.34 lbs
D-1012-FBPO 10 5/8" 15.9mm 12 3/4-14 20.0mm 32mm 0.43 lbs
D-1212-FBPO 12 3/4" 19.0mm 12 3/4-14 20.6mm 32mm 0.50 lbs
D-1216-FBPO 12 3/4" 19.0mm 16 1-11 34.0mm 38mm 0.65 lbs
D-1616-FBPO 16 1" 25.4mm 16 1-11 23.9mm 38mm 0.87 lbs
D-1620-FBPO 16 1" 25.4mm 20 1-1/4-11 39.4mm 50mm 1.33 lbs
D-2020-FBPO 20 1-1/4" 31.8mm 20 1-1/4-11 32.0mm 50mm 1.48 lbs
D-2024-FBPO 20 1-1/4" 31.8mm 24 1-1/2-11 41.9mm 55mm 1.82 lbs
D-2424-FBPO 24 1-1/2" 38.1mm 24 1-1/2-11 33.8mm 55mm 3.05 lbs
D-3232-FBPO 32 2" 50.8mm 32 2-11 34.0mm 70mm 3.13 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
