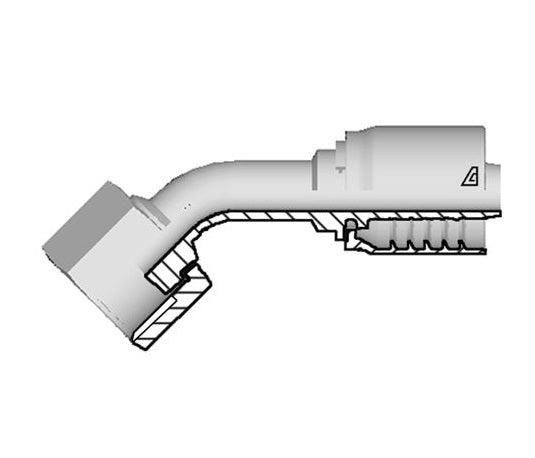

D-1010-FO45 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -10 Hose ID x -10 Female O-Ring Face Seal | Steel

D-1010-FO45 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -10 Hose ID x -10 Female O-Ring Face Seal | Steel

Save $9.45 Save $9.45
$33.08
$33.08 - $33.08
$33.08
$23.63
$23.63 - $23.63
$23.63

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female O-Ring Face Seal
Specifications for Variant SKU: D-1010-FO45 Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 45 Degree
Ends Configuration: 5/8in Hose Barb, 5/8in Female O-Ring Face Seal
Material(s): Steel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
D-0606-FO45 06 3/8" 9.5mm 06 11/16-16 47.4mm 12.0mm 22mm 0.25 lbs
D-0608-FO45 06 3/8" 9.5mm 08 13/16-16 51.2mm 15.0mm 24mm 0.30 lbs
D-0808-FO45 08 1/2" 12.7mm 08 13/16-16 47.1mm 16.0mm 24mm 0.43 lbs
D-0810-FO45 08 1/2" 12.7mm 10 1-14 50.4mm 16.5mm 30mm 0.43 lbs
D-1010-FO45 10 5/8" 15.9mm 10 1-14 57.7mm 17.0mm 30mm 0.51 lbs
D-1012-FO45 10 5/8" 15.9mm 12 1-3/16-12 63.1mm 21.0mm 36mm 0.75 lbs
D-1212-FO45 12 3/4" 19.0mm 12 1-3/16-12 63.5mm 21.0mm 36mm 0.83 lbs
D-1216-FO45 12 3/4" 19.0mm 16 1-7/16-12 70.7mm 24.0mm 41mm 1.25 lbs
D-1616-FO45 16 1" 25.4mm 16 1-7/16-12 82.4mm 26.0mm 41mm 1.34 lbs
D-2020-FO45 20 1-1/4" 31.8mm 20 1-11/16-12 97.4mm 26.0mm 50mm 1.75 lbs
D-2424-FO45 24 1-1/2" 38.1mm 24 2-12 104.4mm 28.0mm 60mm 2.56 lbs
