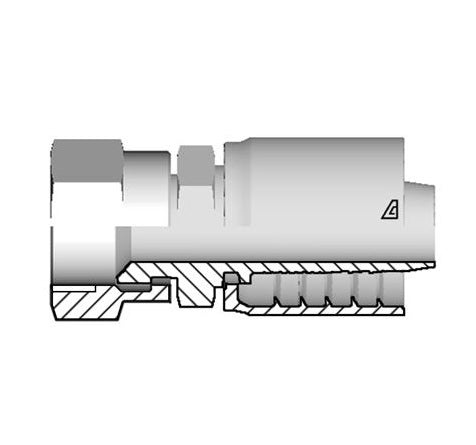

D-1212-FJDH Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Dual Hex | -12 Hose ID x -12 Female JIC 37° Swivel | Steel

D-1212-FJDH Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Dual Hex | -12 Hose ID x -12 Female JIC 37° Swivel | Steel | Pack of 5

Save $43.20 Save $43.20
$117.80
$117.80 - $117.80
$117.80
$74.60
$74.60 - $74.60
$74.60

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Dual Hex | Hose Barb x Female JIC 37° Swivel
Specifications for Variant SKU: D-1212-FJDH Kuriyama | 5 |
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Female JIC
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
D-0606-FJDH 06 3/8" 9.5mm 06 9/16-18 21.3mm 17mm 19mm 0.21 lbs
D-0608-FJDH 06 3/8" 9.5mm 08 3/4-16 24.8mm 19mm 25mm 0.28 lbs
D-0806-FJDH 08 1/2" 12.7mm 06 9/16-18 23.1mm 19mm 19mm 0.34 lbs
D-0808-FJDH 08 1/2" 12.7mm 08 3/4-16 25.6mm 19mm 25mm 0.29 lbs
D-0810-FJDH 08 1/2" 12.7mm 10 7/8-14 26.6mm 22mm 27mm 0.36 lbs
D-0812-FJDH 08 1/2" 12.7mm 12 1-1/16-12 28.1mm 25mm 32mm 0.44 lbs
D-1010-FJDH 10 5/8" 15.9mm 10 7/8-14 27.6mm 24mm 27mm 0.45 lbs
D-1210-FJDH 12 3/4" 19.0mm 10 7/8-14 29.1mm 27mm 27mm 0.55 lbs
D-1212-FJDH 12 3/4" 19.0mm 12 1-1/16-12 28.6mm 27mm 32mm 0.59 lbs
D-1214-FJDH 12 3/4" 19.0mm 14 1-3/16-12 26.8mm 27mm 22mm 0.68 lbs
D-1216-FJDH 12 3/4" 19.0mm 16 1-5/16-12 32.1mm 32mm 38mm 0.73 lbs
D-1612-FJDH 16 1" 25.4mm 12 1-1/16-12 31.4mm 32mm 32mm 0.98 lbs
D-1616-FJDH 16 1" 25.4mm 16 1-5/16-12 32.9mm 32mm 38mm 1.06 lbs
D-2020-FJDH 20 1-1/4" 31.8mm 20 1-5/8-12 39.1mm 41mm 50mm 1.45 lbs
D-2424-FJDH 24 1-1/2" 38.1mm 24 1-7/8-12 43.4mm 50mm 55mm 2.45 lbs
D-3232-FJDH 32 2" 50.8mm 32 2-1/2-12 49.0mm 65mm 70mm 3.24 lbs
