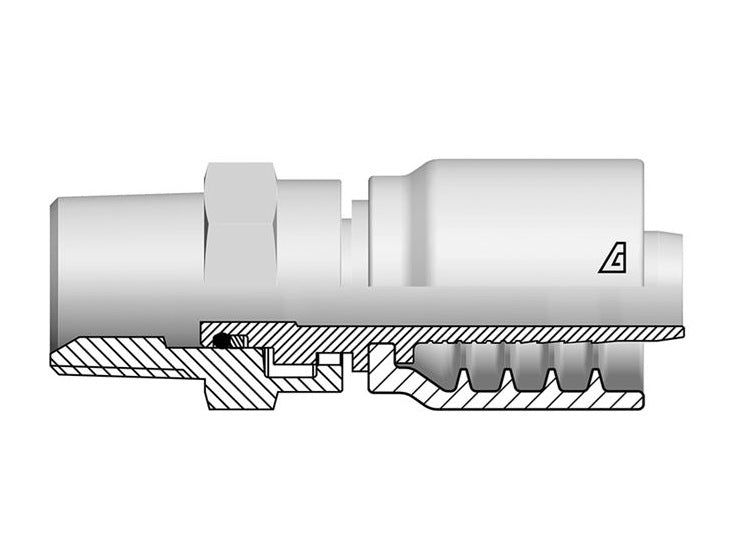

D-1212-MNPS Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -12 Male NPTF Swivel 60° Seat | Steel

Save $10.85 Save $10.85
Original price $37.97
Original price $37.97 - Original price $37.97
Original price $37.97
Current price $27.12
$27.12 - $27.12
Current price $27.12

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male NPTF Swivel 60° Seat


Specifications for Variant SKU: D-1212-MNPS Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Male NPTF
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor
CH1 Weight
Dash
Size
(in.) (mm) Dash
Size
Size
(in) - TPI
(mm) (mm) lbs/each
D-1212-MNPS 12 3/4" 19.0mm 12 3/4-14 50.1mm 32mm 0.55 lbs
D-1616-MNPS 16 1" 25.4mm 16 1-11-1/2 57.9mm 41mm 1.06 lbs
