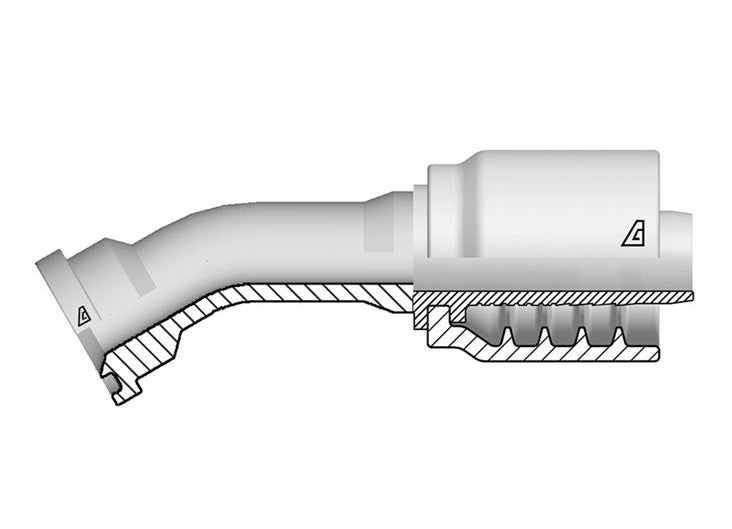

D-1216-C613 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 30° Elbow | -12 Hose ID x -16 Code 61 O-Ring Flange | Steel

D-1216-C613 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 30° Elbow | -12 Hose ID x -16 Code 61 O-Ring Flange | Steel

Save $22.59 Save $22.59
$79.06
$79.06 - $79.06
$79.06
$56.47
$56.47 - $56.47
$56.47

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 30° Elbow | Hose Barb x Code 61 O-Ring Flange
Specifications for Variant SKU: D-1216-C613 Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 30 Degree
Ends Configuration: 3/4in Hose Barb, 1in Code 61 Flange
Material(s): Steel
Applicable Specs & Approvals: SAE J518
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
D-1212-C613 12 3/4" 19.0mm 1.50" 38.1mm 77.5mm 19mm 5000 PSI 0.84 lbs
D-1216-C613 12 3/4" 19.0mm 1.75" 44.5mm 114.0mm 13mm 5000 PSI 0.97 lbs
D-1616-C613 16 1" 25.4mm 1.75" 44.5mm 90.0mm 20mm 5000 PSI 1.27 lbs
D-1620-C613 16 1" 25.4mm 2.00" 50.8mm 89.0mm 22mm 4000 PSI 1.36 lbs
D-2020-C613 20 1-1/4" 31.8mm 2.00" 50.8mm 89.0mm 22mm 4000 PSI 1.74 lbs
D-2024-C613 20 1-1/4" 31.8mm 2.38" 60.3mm 104.0mm 19mm 3000 PSI 1.85 lbs
D-2432-C613 24 1-1/2" 38.1mm 2.81" 71.4mm 145.0mm 35mm 3000 PSI 3.38 lbs
