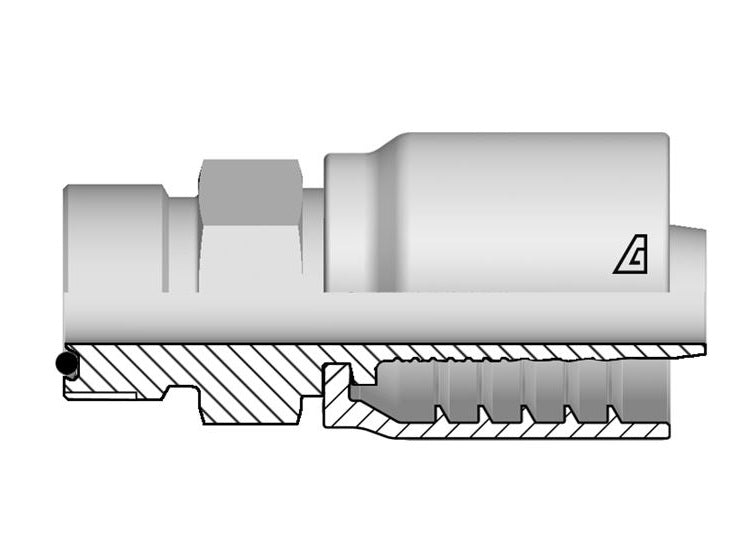

D-1216-MOFS Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -16 Male O-Ring Face Seal | Steel

D-1216-MOFS Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -16 Male O-Ring Face Seal | Steel

Save $12.07 Save $12.07
$42.25
$42.25 - $42.25
$42.25
$30.18
$30.18 - $30.18
$30.18

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male O-Ring Face Seal
Specifications for Variant SKU: D-1216-MOFS Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 1in Male O-Ring Face Seal
Material(s): Steel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) lbs/each
D-0606-MOFS 06 3/8" 9.5mm 06 11/16-16 24.3mm 19mm 0.20 lbs
D-0608-MOFS 06 3/8" 9.5mm 08 13/16-16 26.3mm 22mm 0.22 lbs
D-0808-MOFS 08 1/2" 12.7mm 08 13/16-16 27.1mm 22mm 0.30 lbs
D-0810-MOFS 08 1/2" 12.7mm 10 1-14 30.6mm 27mm 0.36 lbs
D-0812-MOFS 08 1/2" 12.7mm 12 1-3/16-12 37.1mm 32mm 0.38 lbs
D-1010-MOFS 10 5/8" 15.9mm 10 1-14 30.6mm 27mm 0.41 lbs
D-1012-MOFS 10 5/8" 15.9mm 12 1-3/16-12 32.1mm 32mm 0.48 lbs
D-1210-MOFS 12 3/4" 19.0mm 10 1-14 31.1mm 32mm 0.51 lbs
D-1212-MOFS 12 3/4" 19.0mm 12 1-3/16-12 34.6mm 32mm 0.63 lbs
D-1216-MOFS 12 3/4" 19.0mm 16 1-7/16-12 38.1mm 41.0mm 0.81 lbs
D-1616-MOFS 16 1" 25.4mm 16 1-7/16-12 37.9mm 38mm 1.04 lbs
D-1620-MOFS 16 1" 25.4mm 20 1-11/16-12 39.9mm 46mm 1.21 lbs
D-2020-MOFS 20 1-1/4" 31.8mm 20 1-11/16-12 41.5mm 46mm 1.54 lbs
