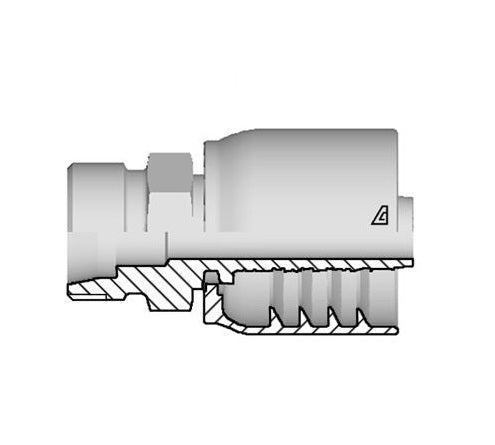

D-1236-MMSH Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3861 Heavy | -12 Hose ID x M36 Male Metric 24° Seat | Steel

Name: D-1236-MMSH Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3861 Heavy | -12 Hose ID x M36 Male Metric 24° Seat | Steel
Brand: Kuriyama
SKU: D-1236-MMSH Kuriyama
Price: 24.38 USD
Availability: InStock

Save $9.75

$34.13

$34.13 - $34.13

$34.13

$24.38

$24.38 - $24.38

$24.38

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3861 Heavy | Hose Barb x Male Metric 24° Seat

Specifications for Variant SKU: D-1236-MMSH Kuriyama
Brand:	Alfagomma
Series:	D Series
Shape (Orientation):	Straight
Material(s):	Steel
Applicable Specs & Approvals:	DIN 3861
Compatible with the following Series:	E4K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| ABT3K Series \| TR1HT Series \| TR2HT Series

About D-Series Fittings:
A one-piece non-skive crimp fitting for: Wire braided hoses above 1" ID and 4 wire spiral hose. Alfabiotech 3000 1-1/4" ID thru 2" ID. Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		Tube OD	C Cut-Off Factor	CH1	Weight
Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (mm) x TP (mm)	(mm)	(mm)	(mm)	lbs/each
D-0620-MMSH	06	3/8"	9.5mm	20	M20x1.5	12mm	25.3mm	22mm	0.22 lbs
D-0622-MMSH	06	3/8"	9.5mm	22	M22x1.5	14mm	27.3mm	22mm	0.23 lbs
D-0824-MMSH	08	1/2"	12.7mm	24	M24x1.5	16mm	29.1mm	24mm	0.29 lbs
D-1030-MMSH	10	5/8"	15.9mm	30	M30x2	20mm	33.1mm	32mm	0.44 lbs
D-1236-MMSH	12	3/4"	19.0mm	36	M36x2	28mm	37.6mm	36mm	0.65 lbs
D-1642-MMSH	16	1"	25.4mm	42	M42x2	30mm	42.4mm	46mm	1.19 lbs
D-2052-MMSH	20	1-1/4"	31.8mm	52	M52x2	38mm	48.0mm	55mm	1.65 lbs
