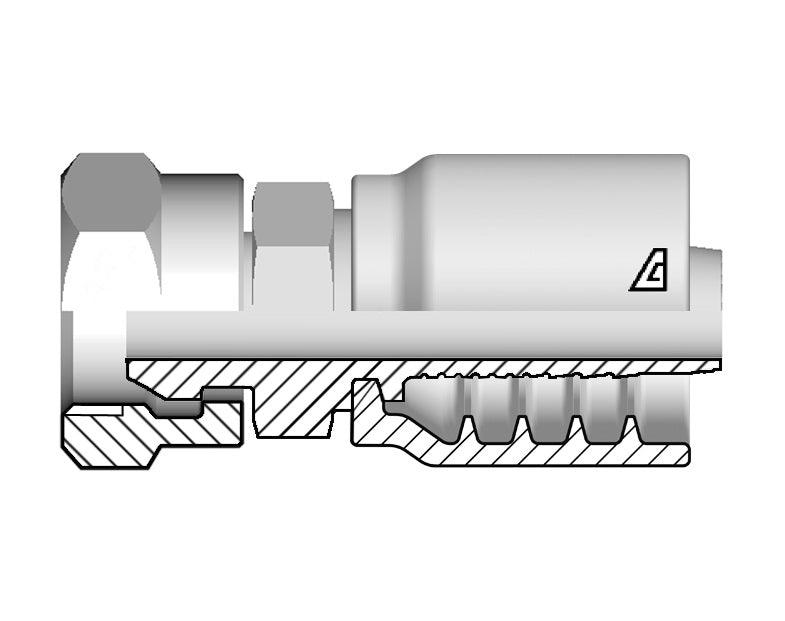

D-1616-FPMS Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Hose ID x -16 Female NPSM | Steel

Name: D-1616-FPMS Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Hose ID x -16 Female NPSM | Steel
Brand: Kuriyama
SKU: D-1616-FPMS Kuriyama
Price: 61.64 USD
Availability: InStock

Save $24.66

$86.30

$86.30 - $86.30

$86.30

$61.64

$61.64 - $61.64

$61.64

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female NPSM

Specifications for Variant SKU: D-1616-FPMS Kuriyama
Brand:	Alfagomma
Series:	D Series
Shape (Orientation):	Straight
Ends Configuration:	1in Hose Barb, 1in Female NPSM
Material(s):	Steel
Compatible with the following Series:	E4K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| ABT3K Series \| TR1HT Series \| TR2HT Series

About D-Series Fittings:
A one-piece non-skive crimp fitting for: Wire braided hoses above 1" ID and 4 wire spiral hose. Alfabiotech 3000 1-1/4" ID thru 2" ID. Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	CH1	CH2	Weight
Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
D-1212-FPMS	12	3/4"	19.0mm	12	3/4-14	28.6mm	32mm	32mm	0.61 lbs
D-1616-FPMS	16	1"	25.4mm	16	1-11-1/2	35.4mm	38mm	36mm	1.02 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
