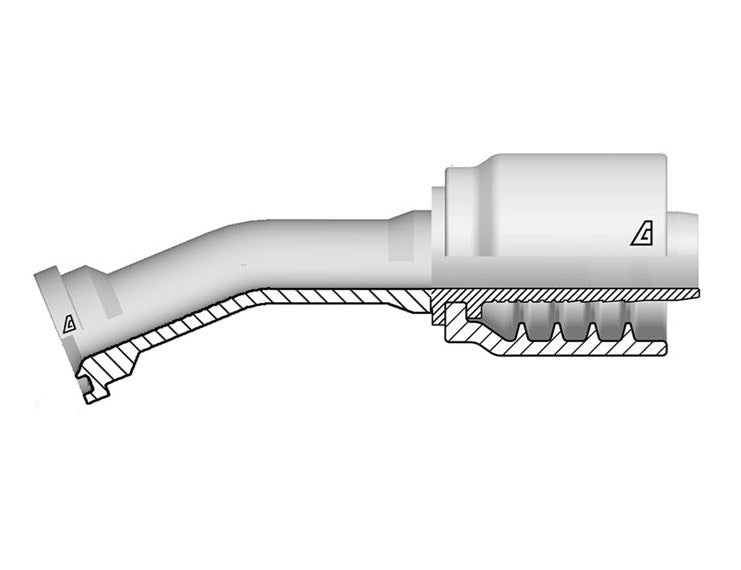

D-2424-C612 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 22.5° Elbow | -24 Hose ID x -24 Code 61 O-Ring Flange | Steel

Save $47.91

$167.68

$167.68 - $167.68

$167.68

$119.77

$119.77 - $119.77

$119.77

Specifications for Variant SKU: D-2424-C612 Kuriyama
Brand:	Alfagomma
Series:	D Series
Shape (Orientation):	22.5 Degree
Ends Configuration:	1-1/2in Hose Barb, 1-1/2in Code 61 Flange
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E4K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| ABT3K Series \| TR1HT Series \| TR2HT Series

About D-Series Fittings:
A one-piece non-skive crimp fitting for: Wire braided hoses above 1" ID and 4 wire spiral hose. Alfabiotech 3000 1-1/4" ID thru 2" ID. Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop	Max Working Pressure	Weight
Part Number	Dash Size	(in.)	(mm)	(in.)	(mm)	(mm)	(mm)	PSI	lbs/each
D-1616-C612	16	1"	25.4mm	1.75"	44.5mm	86.5mm	12.0mm	5000 PSI	1.45 lbs
D-2020-C612	20	1-1/4"	31.8mm	2.00"	50.8mm	114.0mm	13.0mm	4000 PSI	1.93 lbs
D-2024-C612	20	1-1/4"	31.8mm	2.38"	60.3mm	114.0mm	16.0mm	3000 PSI	2.18 lbs
D-2424-C612	24	1-1/2"	38.1mm	2.38"	60.3mm	133.5mm	16.5mm	3000 PSI	2.63 lbs
