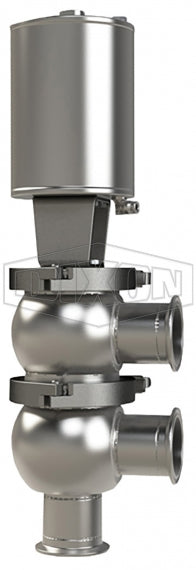

D04A25C1PV Dixon Valve 2-1/2" Single Seat Valve, Divert F Body, Clamp, Spring Return Actuator (Air-To-Raise) - PTFE Plug Seal - FKM Wetted Elastomer

D04A25C1PV Dixon Valve 2-1/2" Single Seat Valve, Divert F Body, Clamp, Spring Return Actuator (Air-To-Raise) - PTFE Plug Seal - FKM Wetted Elastomer

Save $2,067.36 Save $2,067.36
$5,168.40
$5,168.40 - $5,168.40
$5,168.40
$3,101.04
$3,101.04 - $3,101.04
$3,101.04

Dixon Sanitary Valves
2-1/2" Single Seat Valve - Divert F Body - Clamp Ends

Used in sanitary processes for the diversion of fluids. These valves are found in the food processing, beverage, dairy, personal care, winery, brewery, and pet product markets.
Specifications for Variant SKU: D04A25C1PV Dixon
Shape (Orientation): Multi-Directional
Material(s): 316L Stainless Steel, 304 Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Maximum Operating Temperature: 266°F (130°C)
  • Surface ID Finish:< 32Ra
  • Maximum Sterilization Temperature: (20 min/max): 275°F (135°C)
  • Elastomers are FDA and 3A compliant.
Construction:
  • All product contact steel components: 316L stainless steel
  • All non-product contact steel components: 304 stainless steel
Specifications:
  • 3A - authorization number 1655, 53-06 (compression-type valves).
Size Dimensions
A Stroke B C C2 D E F
2-1/2" 11.36" 1.04" 4.72" 3.50" - 6.08" 9.33" 6.00"
Part Number Size Actuator Type Stem Type Wetted Elastomers
D04A25C1EE 2-1/2" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D04A25C2EE 2-1/2" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D04A25C3EE 2-1/2" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D04A25C1EV 2-1/2" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D04A25C2EV 2-1/2" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D04A25C3EV 2-1/2" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D04A25C1PE 2-1/2" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal EPDM Wetted Elastomer
D04A25C2PE 2-1/2" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal EPDM Wetted Elastomer
D04A25C3PE 2-1/2" Double Acting Actuator (Air-To-Air) PTFE Plug Seal EPDM Wetted Elastomer
D04A25C1PV 2-1/2" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal FKM Wetted Elastomer
D04A25C2PV 2-1/2" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal FKM Wetted Elastomer
D04A25C3PV 2-1/2" Double Acting Actuator (Air-To-Air) PTFE Plug Seal FKM Wetted Elastomer
D04A25C2PEG 2-1/2" Spring Return Actuator (Air-To-Lower)
Burkert 8691, Single Acting, 24VDC, Multipin		 PTFE Plug Seal EPDM Wetted Elastomer
D04A25C3PVA 2-1/2" Double Acting Actuator (Air-To-Air)
10-30VDC External Prox, PNP		 PTFE Plug Seal FKM Wetted Elastomer
