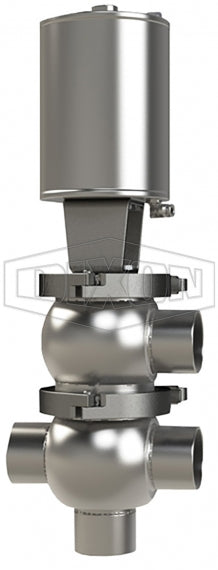

D07A30B2PE Dixon Valve 3" Single Seat Valve, Divert LT Body, Weld, Spring Return Actuator (Air-To-Lower) - PTFE Plug Seal - EPDM Wetted Elastomer

D07A30B2PE Dixon Valve 3" Single Seat Valve, Divert LT Body, Weld, Spring Return Actuator (Air-To-Lower) - PTFE Plug Seal - EPDM Wetted Elastomer

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
3" Single Seat Valve - Divert LT Body - Weld Ends

Used in sanitary processes for the diversion of fluids. These valves are found in the food processing, beverage, dairy, personal care, winery, brewery, and pet product markets.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: D07A30B2PE Dixon
Shape (Orientation): Multi-Directional
Material(s): 316L Stainless Steel, 304 Stainless Steel
Seal Material(s): EPDM
Features:
  • Maximum Operating Temperature: 266°F (130°C)
  • Surface ID Finish: < 32Ra
  • Maximum Sterilization Temperature: (20 min/max): 275°F (135°C)
  • Elastomers are FDA and 3A compliant.
Construction:
  • All product contact steel components: 316L stainless steel
  • All non-product contact steel components: 304 stainless steel
Specifications:
  • 3A - authorization number 1655, 53-06 (compression-type valves).
Size Dimensions
A Stroke B C C2 D E F
3" 11.61" 1.04" 5.04" 3.25" - 6.08" 9.63" 6.00"
Part Number Size Actuator Type Stem Type Wetted Elastomers
D07A30B1EE 3" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D07A30B2EE 3" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D07A30B3EE 3" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D07A30B1EV 3" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D07A30B2EV 3" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D07A30B3EV 3" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D07A30B1PE 3" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal EPDM Wetted Elastomer
D07A30B2PE 3" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal EPDM Wetted Elastomer
D07A30B3PE 3" Double Acting Actuator (Air-To-Air) PTFE Plug Seal EPDM Wetted Elastomer
D07A30B1PV 3" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal FKM Wetted Elastomer
D07A30B2PV 3" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal FKM Wetted Elastomer
D07A30B3PV 3" Double Acting Actuator (Air-To-Air) PTFE Plug Seal FKM Wetted Elastomer
