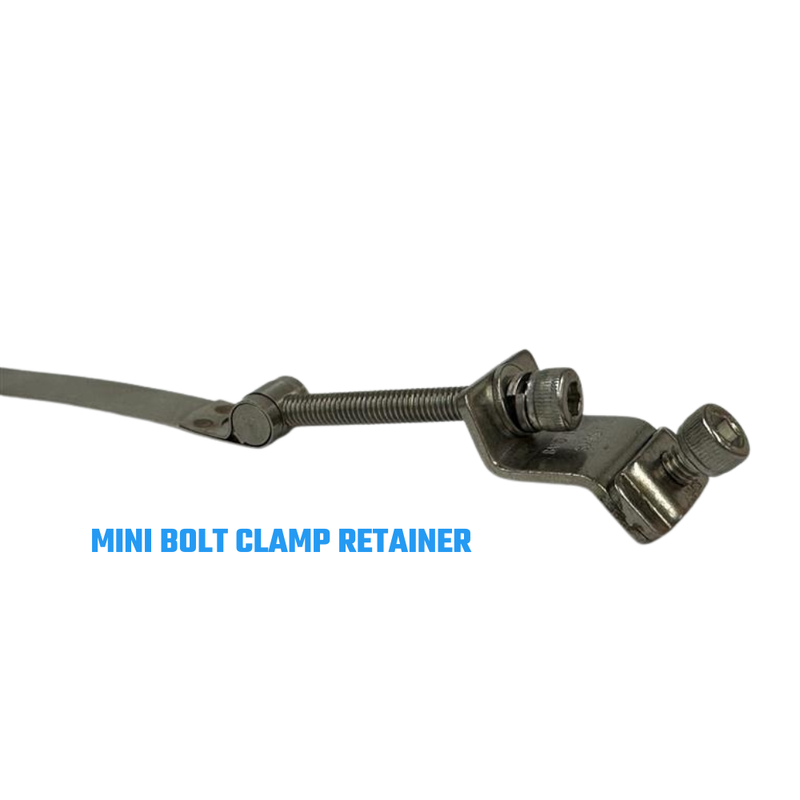

D20409 by Band-It | Mini Bolt Clamp (Retainer) | 1/2" Clamp Width | 4.3" Clamp ID | 316 Stainless Steel

D20409 by Band-It | Mini Bolt Clamp (Retainer) | 1/2" Clamp Width | 4.3" Clamp ID | 316 Stainless Steel

Minimum Order Quantity: 50 Units

Save $2.41 Save $2.41
$8.43
$8.43 - $8.43
$8.43
$6.02
$6.02 - $6.02
$6.02

Band-It®
MINI BOLT CLAMP(RETAINER)
Specifications for Variant SKU: D20409 Band-It
Series: Mini Series
Material(s): 316 Stainless Steel
Clamp Width: 1/2in
Maximum Clamp I.D.: 4.3in
Features
  • Vibration tested clamp design.
  • Corrosion resistant construction available in 304 and 316 stainless steel.
  • Easy assembly and installation using a hex key.
  • Cost-efficient design allows parts to be reused and relocated after initial installation.
Mini Bolt Clamp – Casting
Part Number Material Width Width (mm) Loop Length (in) Loop Length (mm) Max Bolt Torque (N·m) Max DIA Single Wrap Loop Tensile Strength (lbs) Package Quantity
D10309 304 Stainless Steel 1/2" 12.7 15.7" 400 10 4.3" 1416 1 EA
D10319 304 Stainless Steel 1/2" 12.7 33.5" 850 10 9.8" 1416 1 EA
D10329 304 Stainless Steel 1/2" 12.7 51.2" 1300 10 15.4" 1416 1 EA
D10409 316 Stainless Steel 1/2" 12.7 15.7" 400 10 4.3" 1416 1 EA
D10419 316 Stainless Steel 1/2" 12.7 33.5" 850 10 9.8" 1416 1 EA
D10429 316 Stainless Steel 1/2" 12.7 51.2" 1300 10 15.4" 1416 1 EA
D40309 304 Stainless Steel 5/8" 15.8 15.7" 400 10 4.3" 1685 1 EA
D40319 304 Stainless Steel 5/8" 15.8 33.5" 850 10 9.8" 1685 1 EA
D40329 304 Stainless Steel 5/8" 15.8 51.2" 1300 10 15.4" 1685 1 EA
D40409 316 Stainless Steel 5/8" 15.8 15.7" 400 10 4.3" 1685 1 EA
D40419 316 Stainless Steel 5/8" 15.8 33.5" 850 10 9.8" 1685 1 EA
D40429 316 Stainless Steel 5/8" 15.8 51.2" 1300 10 15.4" 1685 1 EA
Mini Bolt Clamp – Retainer
Part Number Material Width Width (mm) Loop Length (in) Loop Length (mm) Max Bolt Torque (N·m) Max DIA Single Wrap Loop Tensile Strength (lbs) Loop Tensile Strength (kg) Package Quantity
D20309 304 Stainless Steel 1/2" 12.7 15.7" 400 10 4.3" 1416 642 1 EA
D20319 304 Stainless Steel 1/2" 12.7 33.5" 850 10 9.8" 1416 642 1 EA
D20329 304 Stainless Steel 1/2" 12.7 51.2" 1300 10 15.4" 1416 642 1 EA
D20409 316 Stainless Steel 1/2" 12.7 15.7" 400 10 4.3" 1416 642 1 EA
D20419 316 Stainless Steel 1/2" 12.7 33.5" 850 10 9.8" 1416 642 1 EA
D20429 316 Stainless Steel 1/2" 12.7 51.2" 1300 10 15.4" 1416 642 1 EA
D20409-RS 316 Stainless Steel 1/2" 12.7 15.7" 400 3 4.3" 494.47 224 1 EA
Band-It

Band-It

Founded in 1937 to produce fastening solutions for the Gates rubber company, BAND-IT has a long tradition of designing and developing new and innovative fastening solutions that withstand the harshest environments and keep people safe. BAND-IT clamps have been designed and manufactured to clamp, manage cable, identify and insulate for dozens of applications worldwide. BAND-IT products deliver the robust performance and durability essential to harsh duty, mission-critical applications in traditional and emerging industries.
