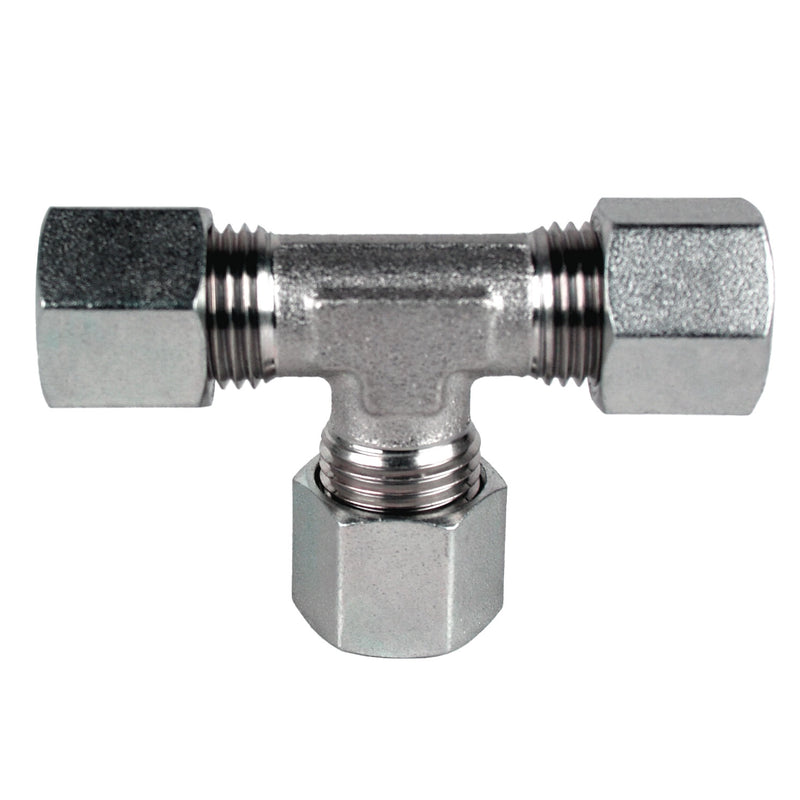

D2603-L10-L10-L10 by Midland | Hydraulic Metric Compression Fitting | DIN Union Tee | Light | L10 Tube OD x L10 Tube OD x L10 Tube OD | Steel

D2603-L10-L10-L10 by Midland | Hydraulic Metric Compression Fitting | DIN Union Tee | Light | L10 Tube OD x L10 Tube OD x L10 Tube OD | Steel

Save $4.33 Save $4.33
$10.82
$10.82 - $10.82
$10.82
$6.49
$6.49 - $6.49
$6.49

Midland Industries
Hydraulic Metric Compression Fitting: DIN Union Tee - Steel

Inventory @ Manufacturers Warehouse: 491 Units
Specifications for Variant SKU: D2603-L10-L10-L10 Midland
Ends Configuration: L10 Female DIN, L10 Female DIN, L10 Female DIN, Some Ends Match
Material(s): Steel
Part Number Tube O.D. 1 Tube O.D. 2 Tube O.D. 3
D2603-L06-L06-L08 Light 6mm Light 6mm Light 8mm
D2603-L06-L06-L10 Light 6mm Light 6mm Light 10mm
D2603-L08-L08-L06 Light 8mm Light 8mm Light 6mm
D2603-L08-L08-L08 Light 8mm Light 8mm Light 8mm
D2603-L08-L08-L10 Light 8mm Light 8mm Light 10mm
D2603-L08-L08-L12 Light 8mm Light 8mm Light 12mm
D2603-L10-L06-L10 Light 10mm Light 6mm Light 10mm
D2603-L10-L10-L06 Light 10mm Light 10mm Light 06mm
D2603-L10-L10-L08 Light 10mm Light 10mm Light 08mm
D2603-L10-L10-L10 Light 10mm Light 10mm Light 10mm
D2603-S08-S08-S08 Heavy 8mm Heavy 8mm Heavy 8mm
D2603-S10-S10-S06 Heavy 10mm Heavy 10mm Heavy 6mm
D2603-S10-S10-S10 Heavy 10mm Heavy 10mm Heavy 10mm
D2603-S12-S12-S06 Heavy 12mm Heavy 12mm Heavy 6mm
D2603-S12-S12-S08 Heavy 12mm Heavy 12mm Heavy 8mm
D2603-S12-S12-S10 Heavy 12mm Heavy 12mm Heavy 10mm
D2603-S12-S12-S12 Heavy 12mm Heavy 12mm Heavy 12mm
D2603-S12-S12-S16 Heavy 12mm Heavy 12mm Heavy 16mm
D2603-S14-S14-S10 Heavy 14mm Heavy 14mm Heavy 10mm
D2603-S14-S14-S14 Heavy 14mm Heavy 14mm Heavy 14mm
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
