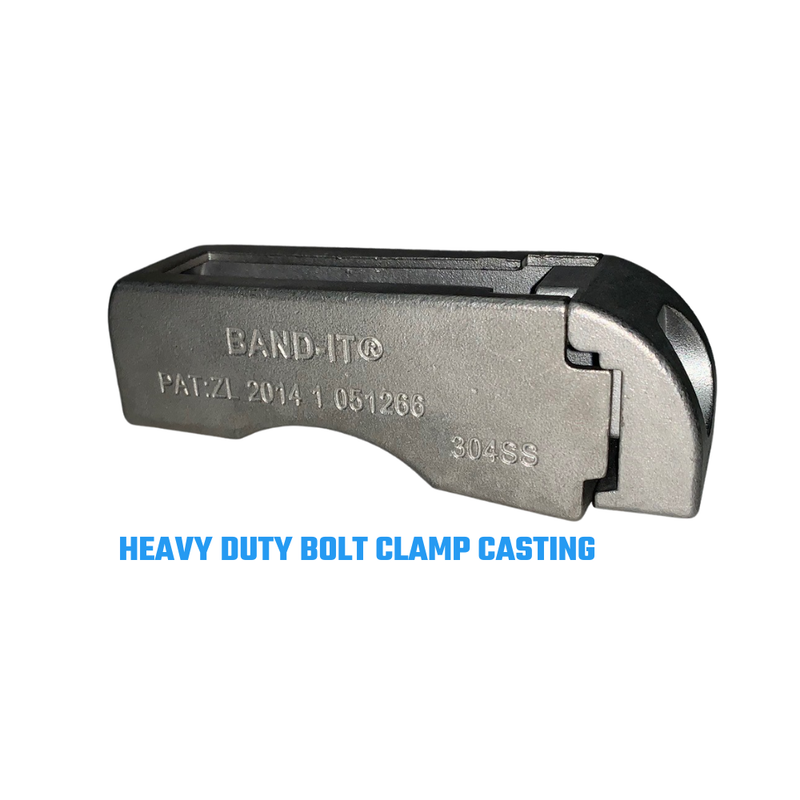

D60059 by Band-It | Heavy-Duty Bolt Clamp (Casting) | 1.1" Clamp Width | 4.3" Clamp ID | 304 Stainless Steel

D60059 by Band-It | Heavy-Duty Bolt Clamp (Casting) | 1.1" Clamp Width | 4.3" Clamp ID | 304 Stainless Steel

Minimum Order Quantity: 25 Units

Save $17.49 Save $17.49
$61.22
$61.22 - $61.22
$61.22
$43.73
$43.73 - $43.73
$43.73

Band-It®
HEAVY DUTY BOLT CLAMP (CASTING)
Specifications for Variant SKU: D60059 Band-It
Series: Heavy-Duty Series
Material(s): 304 Stainless Steel
Clamp Width: 1.1in
Maximum Clamp I.D.: 7.9in
Features
  • Vibration tested clamp design.
  • Corrosion resistant construction available in 304 and 316 stainless steel.
  • Easy assembly and installation using a hex key.
  • Cost-efficient design allows parts to be reused and relocated after initial installation.
Heavy Duty Bolt Clamp – Casting
Part Number Material (Casting) Material (Band) Width (in) Width (mm) Loop Length (in) Loop Length (mm) Max Bolt Torque (N·m) Max DIA Single Wrap (in) Max DIA Single Wrap (mm) Loop Tensile Strength (lbs) Loop Tensile Strength (kg) Package Quantity
D60059 304 Stainless Steel 316 Stainless Steel 1.1" 28.1 35.4" 900 25 7.9" 200 4720 2141 1 EA
D60109 304 Stainless Steel 316 Stainless Steel 1.1" 28.1 70.9" 1800 25 19.7" 500 4720 2141 1 EA
D60209 304 Stainless Steel 316 Stainless Steel 1.1" 28.1 82.7" 2100 25 23.6" 600 4720 2141 1 EA
D60309 304 Stainless Steel 316 Stainless Steel 1.1" 28.1 94.5" 2400 25 27.6" 700 4720 2141 1 EA
D60409 304 Stainless Steel 316 Stainless Steel 1.1" 28.1 106.3" 2700 25 31.5" 800 4720 2141 1 EA
Band-It

Band-It

Founded in 1937 to produce fastening solutions for the Gates rubber company, BAND-IT has a long tradition of designing and developing new and innovative fastening solutions that withstand the harshest environments and keep people safe. BAND-IT clamps have been designed and manufactured to clamp, manage cable, identify and insulate for dozens of applications worldwide. BAND-IT products deliver the robust performance and durability essential to harsh duty, mission-critical applications in traditional and emerging industries.
