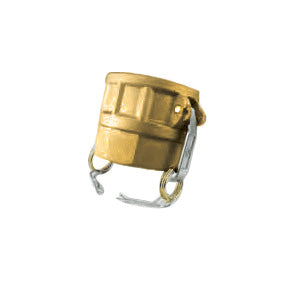

D600B by Jason Industrial | 6" Cam and Groove | Part D | Female Coupler x Female NPT Thread | Brass

D600B by Jason Industrial | 6" Cam and Groove | Part D | Female Coupler x Female NPT Thread | Brass

Save $166.85 Save $166.85
$269.41
$269.41 - $269.41
$269.41
$102.56
$102.56 - $102.56
$102.56

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part D - Female Coupler x Female NPT Thread - Brass
Specifications for Variant SKU: D600B Jason
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 6in Female Cam & Groove, 6in Female NPT
Material(s): Brass, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Female end fits male adapter or Dust Plug.
  • Female end thread is NPT.
  • Bowl has recess for washer replacement.
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • The 1/2" size is not specified to any Mil spec.
  • Brass body has high tensile strength and rigidity.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which prevent disconnection during use.
Material Specs:
  • Brass material meets ASTM B584 Grade C85700 specs.
  • 304 Type stainless steel handles and pull rings.
  • Steel handle pins, pull rings and safety clips are all zinc-plated.
  • Brass handles are forged.
  • Gaskets are nitrile.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Max. Working Pressure* PSI
D075B 3/4" 250 PSI
D100B 1" 250 PSI
D125B 1-1/4" 250 PSI
D150B 1-1/2" 250 PSI
D200B 2" 250 PSI
D250B 2-1/2" 150 PSI
D300B 3" 125 PSI
D400B 4" 100 PSI
D600B 6" 75 PSI

* Metal coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
