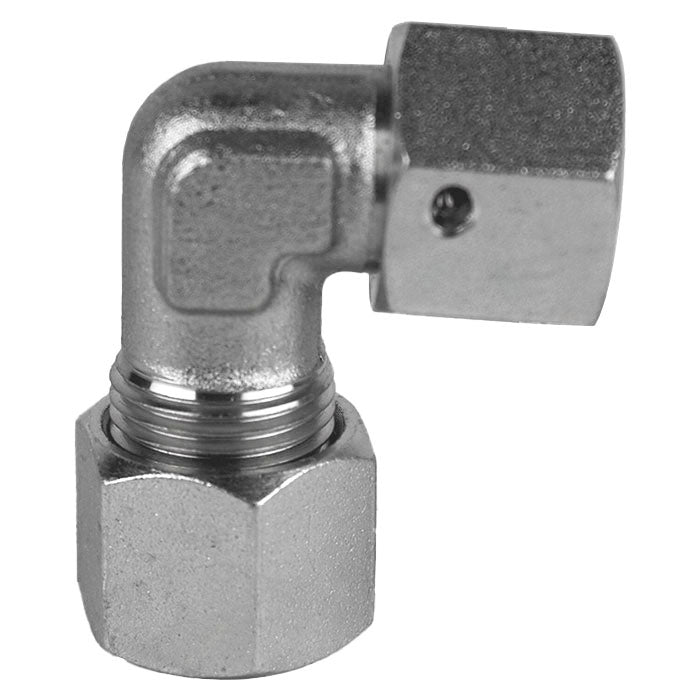

D6500-L35-L35 by Midland | Hydraulic Metric Compression Fitting | DIN to Female DIN Swivel | 90° Elbow | Light | L35 Tube OD x L35 Tube OD | Steel

Save $11.22

$30.75

$30.75 - $30.75

$30.75

$19.53

$19.53 - $19.53

$19.53

Midland Industries
Hydraulic Metric Compression Fitting: DIN to Female DIN Swivel - 90° Elbow - Steel

Inventory @ Manufacturers Warehouse: 517 Units

Specifications for Variant SKU: D6500-L35-L35 Midland
Shape (Orientation):	90 Degree
Ends Configuration:	L35 Female DIN, L35 Female DIN, Some Ends Match
Material(s):	Steel

Part Number	Tube O.D. 1	Tube O.D. 2
D6500-LN-L08-L08	Light 08mm	Light 08mm
D6500-L10-L10	Light 10mm	Light 10mm
D6500-L12-L12	Light 12mm	Light 12mm
D6500-L15-L15	Light 15mm	Light 15mm
D6500-L18-L18	Light 18mm	Light 18mm
D6500-L22-L22	Light 22mm	Light 22mm
D6500-L28-L28	Light 28mm	Light 28mm
D6500-L35-L35	Light 35mm	Light 35mm
D6500-L42-L42	Light 42mm	Light 42mm
D6500-S06-S06	Heavy 6mm	Heavy 6mm
D6500-S08-S08	Heavy 8mm	Heavy 8mm
D6500-S10-S10	Heavy 10mm	Heavy 10mm
D6500-S12-S12	Heavy 12mm	Heavy 12mm
D6500-S14-S14	Heavy 14mm	Heavy 14mm
D6500-S16-S16	Heavy 16mm	Heavy 16mm
D6500-S20-S20	Heavy 20mm	Heavy 20mm
D6500-S25-S25	Heavy 25mm	Heavy 25mm
D6500-S30-S30	Heavy 30mm	Heavy 30mm
D6500-S38-S38	Heavy 38mm	Heavy 38mm

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
