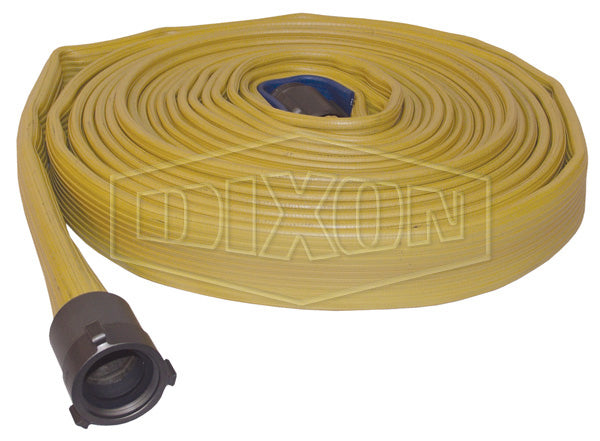

D8325Y50RAF Dixon 800# Double Jacket All Polyester Fire Hose - Yellow Impregnated - Coupled - Female x Male NST(NH) Thread - 3" Hose Size - 50ft Length

D8325Y50RAF Dixon 800# Double Jacket All Polyester Fire Hose - Yellow Impregnated - Coupled - Female x Male NST(NH) Thread - 3" Hose Size - 50ft Length

Save $387.21 Save $387.21
$968.02
$968.02 - $968.02
$968.02
$580.81
$580.81 - $580.81
$580.81

Dixon Fire Fittings
Fire Hose - 800# Double Jacket All Polyester Fire Hose - Yellow Color Impregnated - Coupled
Specifications for Variant SKU: D8325Y50RAF Dixon
Series: Fire Hose
Hose Color(s): Yellow
Internal Diameter: 3in
Tubing Construction: Synthetic Rubber
Cover Construction: Polyester Textile Braid
Ends Configuration: 2-1/2in Female NST, 2-1/2in Male NST
Features:
  • Outer construction: double jacket, all polyester.
  • Tube construction: black, synthetic rubber liner.
  • Proof pressure: 800 PSI at 70°F (21°C)
  • Service test pressure: 400 PSI at 70°F (21°C)
  • Working pressure: 360 PSI at 70°F (21°C)
Part Number Hose Size Thread Size Length Weight
(Lbs.)
D815Y50RAF 1-1/2" 1-1/2" NST(NH) 50 ft 13.0000
D815Y100RAF 1-1/2" 1-1/2" NST(NH) 100 ft 30.0000
D815Y50RAS 1-1/2" 1-1/2" NPSH 50 ft 14.3500
D815Y100RAS 1-1/2" 1-1/2" NPSH 100 ft 30.0000
D817Y50RAF 1-3/4" 1-1/2" NST(NH) 50 ft 18.9200
D825Y50RAF 2-1/2" 2-1/2" NST(NH) 50 ft 30.0000
D825Y100RAF 2-1/2" 2-1/2" NST(NH) 100 ft 70.0000
D8325Y50RAF 3" 2-1/2" NST(NH) 50 ft 37.4000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
