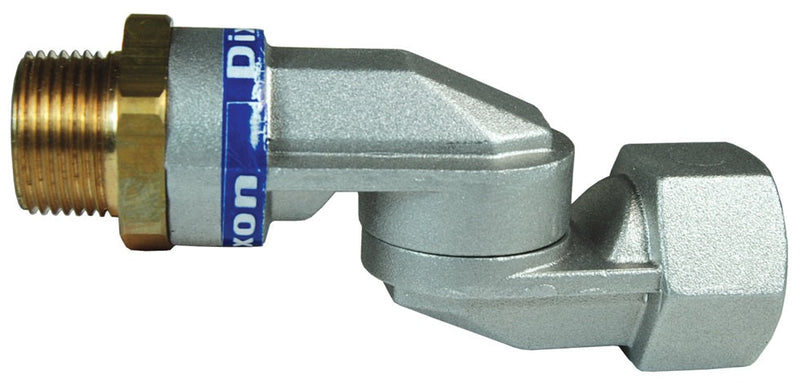

DAC1010 by Dixon Valve | Multi-Plane Hose Swivel | for Diesel & Gasoline Nozzle | 1" Male NPT x 1" Female NPT | Aluminum

DAC1010 by Dixon Valve | Multi-Plane Hose Swivel | for Diesel & Gasoline Nozzle | 1" Male NPT x 1" Female NPT | Aluminum

Save $77.30 Save $77.30
$193.25
$193.25 - $193.25
$193.25
$115.95
$115.95 - $115.95
$115.95

Dixon Valve
Tank Truck | Multi-Plane Hose Swivel for Diesel & Gasoline Nozzle
Specifications for Variant SKU: DAC1010 Dixon
Brand: Bayco
Shape (Orientation): Multi-Directional
Ends Configuration: 1in Male NPT, 1in Female NPT
Material(s): Aluminum, Brass
Features:
  • Brass male end will not gall in nozzle castings.
  • Dual O-rings seal with all fuels.
  • Machined brass sleeve gives smooth seal surface - no leaks.
  • Internal nylon retainer cord secures firmly but allows free rotation.
Construction:
  • Body: Machined aluminum casting.
  • Male End: Machined brass bar stock.
  • Sleeve: Machined brass bar stock.
Part Number Size
DAC3434 3/4" Male NPT x 3/4" Female NPT
DAC1034 1" Male NPT x 3/4" Female NPT
DAC1010 1" Male NPT x 1" Female NPT
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
