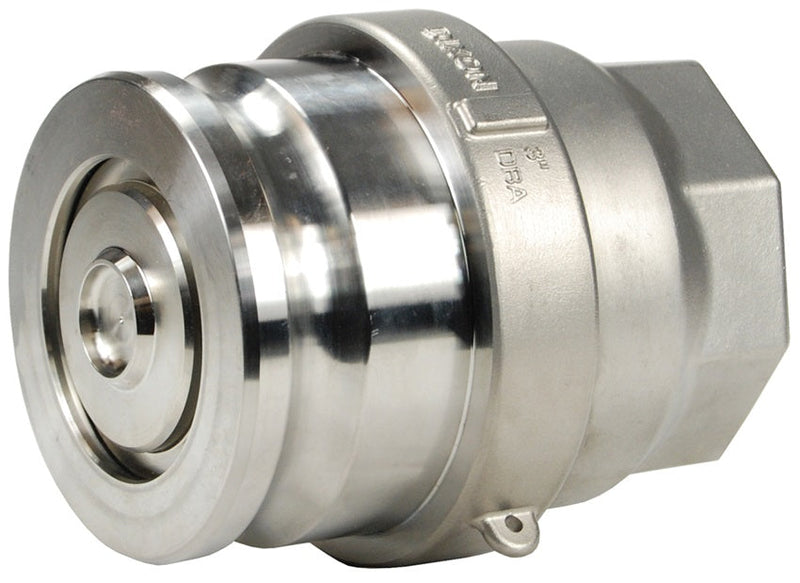

DBA73-300 Bayloc® by Dixon Valve | Dry Disconnect | 3" Female NPT x 4" Adapter | PTFE Encapsulated Silicone Seal | Stainless Steel

DBA73-300 Bayloc® by Dixon Valve | Dry Disconnect | 3" Female NPT x 4" Adapter | PTFE Encapsulated Silicone Seal | Stainless Steel

Save $718.11 Save $718.11
$1,795.27
$1,795.27 - $1,795.27
$1,795.27
$1,077.16
$1,077.16 - $1,077.16
$1,077.16

Dixon Valve
Bayloc® Dry Disconnect | Adapter x Female NPT

Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to "snap" closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.

For use in transfer of hazardous fluids.
Specifications for Variant SKU: DBA73-300 Dixon
Brand: Bayloc
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 4in Male Cam & Groove, 3in Female NPT
Material(s): Stainless Steel
Seal Material(s): PTFE & Silicone
Compatibility & Interchange Data:
  • Compatible with most other brands of cam and groove style dry disconnects.
  • Fully interchangeable with Kamvalok (OPW trademark) style fittings.
Use:
  • Use with DBA style adapters.
  • Use with standard cam and groove dust plug sized one size larger than the dry disconnect size.
Features:
  • Cam & Groove Style.
  • Two-piece adapter design for easy rebuilding of adapters.
  • Spring loaded sealing device snaps closed should valve become disconnected with the poppet open.
Safety Notes:
  • Use with DBC or D2C style couplers.
  • Use with standard cam and groove dust caps sized one size larger than the dry disconnect size.
Aluminum
Part Number		 Stainless Steel
Part Number		 Female NPT Coupler Size Seal Material Maximum
PSI at
70°F (21°C)
DBA11-150 DBA71-150 1-1/2" 2" Nitrile Rubber 210 PSI
DBA11-200 DBA71-200 2" 2-1/2" Nitrile Rubber 150 PSI
DBA11-300 DBA71-300 3" 4" Nitrile Rubber 120 PSI
DBA12-150 DBA72-150 1-1/2" 2" FKM 210 PSI
DBA12-200 DBA72-200 2" 2-1/2" FKM 150 PSI
DBA12-300 DBA72-300 3" 4" FKM 120 PSI
DBC63-150 DBA73-150 1-1/2" 2" PTFE Encapsulated Silicone 210 PSI
DBC63-200 DBA73-200 2" 2-1/2" PTFE Encapsulated Silicone 150 PSI
DBA63-300 DBA73-300 3" 4" PTFE Encapsulated Silicone 120 PSI
DBA64-150 DBA74-150 1-1/2" 2" EPDM 210 PSI
DBA64-200 DBA74-200 2" 2-1/2" EPDM 150 PSI
DBA64-300 DBA74-300 3" 4" EPDM 120 PSI
DBA66-150 DBA76-150 1-1/2" 2" FFPM 210 PSI
DBA66-200 DBA76-200 2" 2-1/2" FFPM 150 PSI
DBA66-300 DBA76-300 3" 4" FFPM 120 PSI
- DBA77-150 1-1/2" 2" PTFE Encapsulated FKM 210 PSI
- DBA77-200 2" 2-1/2" PTFE Encapsulated FKM 150 PSI
- DBA77-300 3" 4" PTFE Encapsulated FKM & FFKM 120 PSI
DBA69-300 - 3" 4" FKM-B 120 PSI
