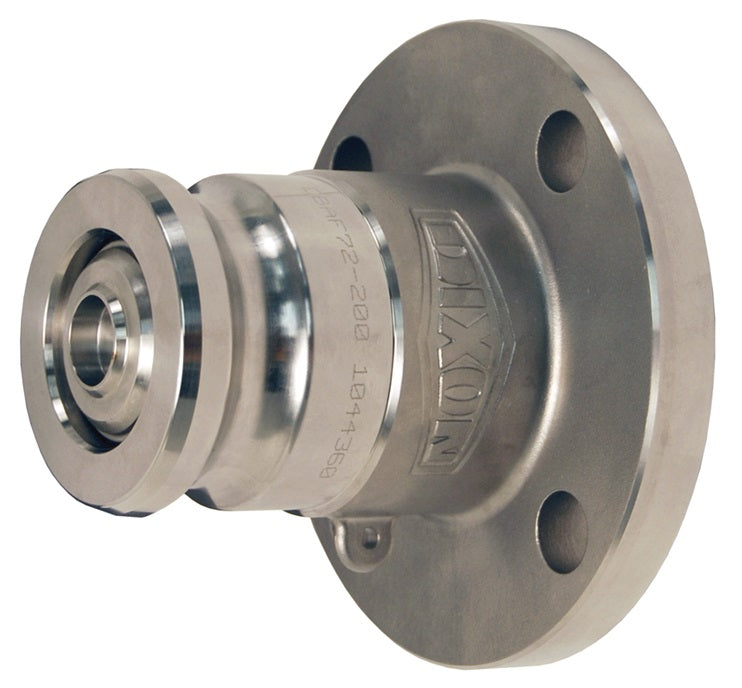

DBAF76-200 Bayloc® by Dixon Valve | Dry Disconnect | 2" 150# ASA Flange x 2-1/2" Adapter | FFPM Seal | Stainless Steel

DBAF76-200 Bayloc® by Dixon Valve | Dry Disconnect | 2" 150# ASA Flange x 2-1/2" Adapter | FFPM Seal | Stainless Steel

Save $1,018.91 Save $1,018.91
$2,547.28
$2,547.28 - $2,547.28
$2,547.28
$1,528.37
$1,528.37 - $1,528.37
$1,528.37

Dixon Valve
Bayloc® Dry Disconnect | Adapter x 150# ASA Flange

Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to "snap" closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.

For use in transfer of hazardous fluids.
Specifications for Variant SKU: DBAF76-200 Dixon
Brand: Bayloc
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2-1/2in Male Cam & Groove, 2in 150# Flange
Material(s): Stainless Steel
Seal Material(s): FFPM
Compatibility & Interchange Data:
  • Compatible with most other brands of cam and groove style dry disconnects.
  • Fully interchangeable with Kamvalok (OPW trademark) style fittings.
Construction:
  • Stainless steel piston.
  • Stainless steel corrosion resistance is comparable to 304 stainless steel.
Use:
  • Use with DBA style adapters.
  • Use with standard cam and groove dust plug sized one size larger than the dry disconnect size.
Features:
  • Coupler has automatic closing poppet assembly.
  • Heavy duty construction provides long service life.
  • Stainless steel handle allows product exposure to corrosive chemicals or washdown service.
  • Strong handle attachment prevents bending of crank assembly.
  • Dixon EZ Boss-Lock cam arms provide added security from accidental opening due to vibration or snagging. Very easy to use, just close the arms and they lock, to open simply lift the lever.
Stainless Steel
Part Number		 Flange Size Adapter Size Seal Material Maximum
PSI at
70°F (21°C)
DBAF72-1520 2" 2" FKM 150 PSI
DBAF73-1520 2" 2" PTFE Encapsulated Silicone 150 PSI
DBAF74-1520 2" 2" EPDM 150 PSI
DBAF76-1520 2" 2" FFPM 150 PSI
DBAF72-200 2" 2-1/2" FKM 150 PSI
DBAF73-200 2" 2-1/2" PTFE Encapsulated Silicone 150 PSI
DBAF74-200 2" 2-1/2" EPDM 150 PSI
DBAF76-200 2" 2-1/2" FFPM 150 PSI
DBAF72-300 3" 4" FKM 150 PSI
DBAF73-300 3" 4" PTFE Encapsulated Silicone 150 PSI
DBAF74-300 3" 4" EPDM 150 PSI
DBAF76-300 3" 4" FFPM 150 PSI
