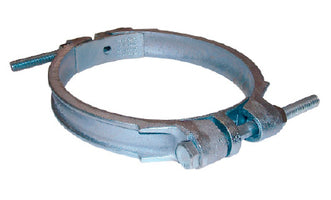

DBC-463-DP by Midland | Buchanan Double Bolt Clamp | DBC Series | Size: 4-1/16" | Clamp Range: 4-1/16" to 4-7/16" | Zinc Plated Ductile Iron Band / Zinc Plated Carbon Steel Bolt

DBC-463-DP by Midland | Buchanan Double Bolt Clamp | DBC Series | Size: 4-1/16" | Clamp Range: 4-1/16" to 4-7/16" | Zinc Plated Ductile Iron Band / Zinc Plated Carbon Steel Bolt

Save $4.47 Save $4.47
$11.17
$11.17 - $11.17
$11.17
$6.70
$6.70 - $6.70
$6.70

Midland Industries
Buchanan Double Bolt Clamp - Zinc Plated Ductile Iron Band / Zinc Plated Carbon Steel Bolt

Inventory @ Manufacturers Warehouse: 12 Units
Specifications for Variant SKU: DBC-463-DP Midland
Material(s): Zinc Plated Ductile Iron, Zinc Plated Carbon Steel
Features:
  • DBC Series
  • Rugged, heavy duty two bolt clamps with saddles
  • Zinc plated ductile iron clamps and saddles
  • Zinc plated carbon steel bolt and nuts
  • Import
Part Number Size Clamp Range Max Torque
DBC-40-DP 1-5/16" 1-5/16" to 1-19/32" 20 ft lbs
DBC-60-DP 1-7/8" 1-7/8" to 2-3/8" 25 ft lbs
DBC-76-DP 2-3/8" 2-3/8" to 3-1/16" 25 ft lbs
DBC-94-DP 3-1/2" 3-1/2" to 3-11/16" 40 ft lbs
DBC-400-DP 3-1/2" 3-1/2" to 4" 40 ft lbs
DBC-431-DP 3-13/16" 3-13/16" to 4-1/16" 40 ft lbs
DBC-463-DP 4-1/16" 4-1/16" to 4-7/16" 40 ft lbs
DBC-525-DP 4-3/16" 4-3/16" to 5" 60 ft lbs
DBC-550-DP 5" 5" to 5-1/2" 60 ft lbs
DBC-600-DP 5-1/2" 5-1/2" to 5-15/16" 60 ft lbs
DBC-639-DP 5-11/16" 5-11/16" to 5-15/16" 60 ft lbs
DBC-675-DP 6-1/8" 6-1/8" to 6-7/8" 60 ft lbs
DBC-769-DP 6-15/16" 6-15/16" to 7-5/8" 60 ft lbs
DBC-818-DP 7-11/16" 7-11/16" to 8-3/16" 125 ft lbs
DBC-875-DP 8-1/4" 8-1/4" to 8-7/8" 125 ft lbs
DBC-988-DP 8-15/16" 8-15/16" to 9-7/8" 125 ft lbs
DBC-1125-DP 9-15/16" 9-15/16" to 11-3/8" 125 ft lbs
DBC-1275-DP 11-3/16" 11-3/16" to 13" 125 ft lbs
DBC-1360-DP 12-3/16" 12-3/16" to 14 200 ft lbs
