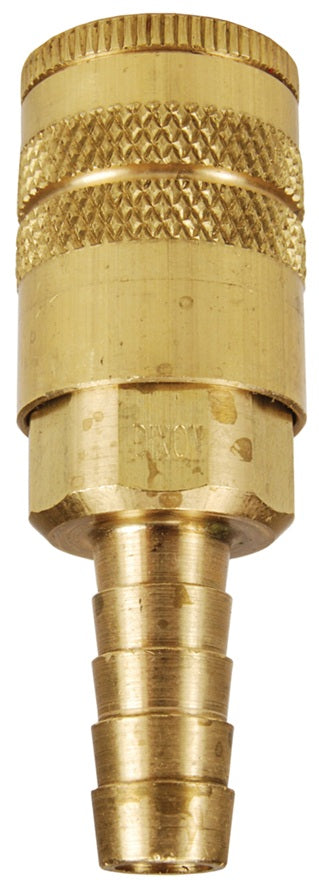

DC2043 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Semi-Automatic | Hose Barb | 5/16" Hose ID x 1/4" Body Size | Brass

Save $8.67

$21.68

$21.68 - $21.68

$21.68

$13.01

$13.01 - $13.01

$13.01

Air Chief Industrial Interchange Quick-Connect Couplers Air Chief industrial quick-connect couplers are the popular Industrial Interchange design and will interchange with many other makes. Couplers shut-off when disconnected. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F

Specifications for Variant SKU: DC2043 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female ISO-6150 Series B Industrial Pneumatic QD Interchange, 5/16in Hose Barb
Material(s):	Brass

Features:
Semi-automatic - pull sleeve to connect. Couplers shut-off when disconnected. Interchanges with many other manufacturer's designs.
Construction:
Steel
Specifications:
Interchanges with MIL Spec. MIL-C-4109F/A-A-59439 and ISO 6150-B. Pressure rating: 300 PSI Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
For air service only. Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.

Brass Part Number	Steel Part Number	Body Size	Male NPT	Flow Rating at 100 PSI
DC2042	-	1/4"	1/4"	37 CFM
DC2043	-	1/4"	5/16"	37 CFM
DC2044	-	1/4"	3/8"	37 CFM
-	DC2644	3/8"	3/8"	70 CFM
-	DC2645	3/8"	1/2"	70 CFM
-	DC1044	1/2"	3/8"	150 CFM
-	DC1045	1/2"	1/2"	150 CFM
-	DC1046	1/2"	3/4"	150 CFM
