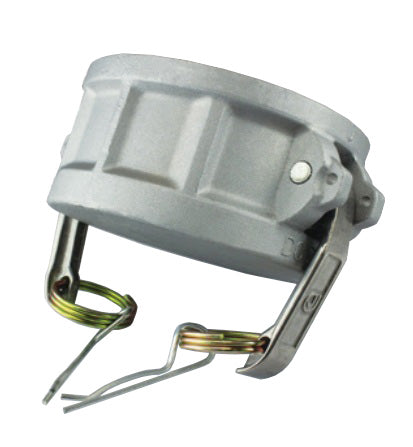

DC250A by Jason Industrial | Part DC | Cam & Groove Dust Cap | 2-1/2" Size | Aluminum

DC250A by Jason Industrial | Part DC | Cam & Groove Dust Cap | 2-1/2" Size | Aluminum

Save $7.74 Save $7.74
$16.43
$16.43 - $16.43
$16.43
$8.69
$8.69 - $8.69
$8.69

Jason Industrial
Cam & Groove (Camlock) Adapter | Part DC | Dust Cap | Aluminum

Fits male adapters.
Specifications for Variant SKU: DC250A Jason
Shape (Orientation): Straight
Cam Type: Type DC
Ends Configuration: 2-1/2in Female Cam & Groove
Material(s): Aluminum
Seal Material(s): Nitrile
Adapters

Jason Industrial | Cam & Groove (Camlock)
Adapter
Part DC | Dust Cap

1

What is this product used for?
  • Cam & Groove fittings, also known as camlock fittings, provide a fast, secure way to connect and disconnect hoses and pipes without tools. They are commonly used for transferring water, petroleum products, chemicals, agricultural liquids, dry bulk materials, and other industrial fluids where quick connections are needed.
2

What are the main product features?
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326D. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • Aluminum body features being lightweight, rigid and having high tensile strength.
  • Female couplers are supplied with safety pins.
  • Cam arms are 304 Stainless.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which will prevent disconnection during use.
  • The 1/2" and 8" sizes are not specified to any Mil spec.
  • The 8" comes in two different styles. That size will interchange as follows:
    - Jason 800 series interchanges with PT Domestic, Kuriyama of America, Dixon Global and Campbell.
    - Jason 801 series interchanges with PT Import, NECO, Dixon Andrews, Evertite/APG, UPD and Sealfast.
3

What are the Material Specs?
  • Aluminum alloy spec ASTM B85 Grade 383.
  • 304 Type stainless steel handles.
  • Steel handle pins, pull rings and safety clips are zinc-plated.
  • Gaskets are nitrile.
4

Which sizes or configurations are available?
Part Number Size Max. Working Pressure
PSI
DC075A 3/4" 250 PSI
DC100A 1" 250 PSI
DC125A 1-1/4" 250 PSI
DC150A 1-1/2" 250 PSI
DC250A 2-1/2" 150 PSI
DC300A 3" 125 PSI
DC500A 5" 75 PSI
DC600A 6" 75 PSI
DC800A 8" 50 PSI
⚠ CAUTION: Metal coupling pressures are based on ambient temperature (+70°F or +21°C) with standard NBR gasket.
