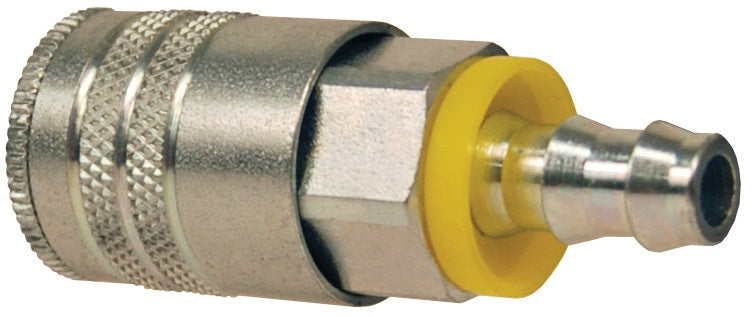

DC2644L Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Semi-Automatic | Push-On Hose Barb | 3/8" Hose ID x 3/8" Body Size | Steel

Save $14.22

$35.55

$35.55 - $35.55

$35.55

$21.33

$21.33 - $21.33

$21.33

Air Chief Industrial Interchange Quick-Connect Couplers Air Chief industrial quick-connect couplers are the popular Industrial Interchange design and will interchange with many other makes. Couplers shut-off when disconnected. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F

Quantity

Specifications for Variant SKU: DC2644L Dixon
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female ISO-6150 Series B Industrial Pneumatic QD Interchange, 3/8in Push-On Hose Barb
Material(s):	Steel

Features:
Semi-automatic - pull sleeve to connect. Couplers shut-off when disconnected. Interchanges with many other manufacturer's designs.
Construction:
Steel
Specifications:
Interchanges with MIL Spec. MIL-C-4109F/A-A-59439 and ISO 6150-B. Pressure rating: 300 PSI Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
For air service only. Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.

Brass Part Number	Steel Part Number	Body Size	Male NPT	Flow Rating at 100 PSI
DC2042L	-	1/4"	1/4"	37 CFM
DC2044L	-	1/4"	3/8"	37 CFM
-	DC2644L	3/8"	3/8"	70 CFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
