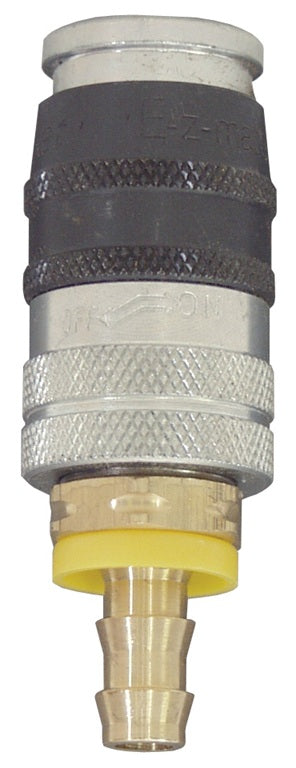

DC2644LSE by Parker / Dixon Valve | Pneumatic E-Z-Mate Industrial Coupler/Socket | Push-Lock Hose Barb | 3/8" Hose ID x 3/8" Body Size | Steel

DC2644LSE by Parker / Dixon Valve | Pneumatic E-Z-Mate Industrial Coupler/Socket | Push-Lock Hose Barb | 3/8" Hose ID x 3/8" Body Size | Steel

Save $5.31 Save $5.31
$59.37
$59.37 - $59.37
$59.37
$54.06
$54.06 - $54.06
$54.06

Parker Ez-Mate Industrial Interchange Couplers Ez-Mate couplings combine push-to-connect, exhaust-style action with a self-locking valve sleeve to guard against accidental disconnection. Simply follow the direction of the on-off arrow stamped on the yellow chromate valve sleeve. Valve sleeve acts as an integral shut-off valve that allows connection and disconnection at zero pressure. When the sleeve is moved to shut off air flow, it automatically vents downstream allowing for disconnection at zero pressure and eliminating the risk of hose whip. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DC2644LSE Dixon
Shape (Orientation): Straight
Ends Configuration: 3/8in Female EZ-Mate QD Interchange, 3/8in Push-On Hose Barb
Material(s): Steel
How It Works:
  • Simply follow the on-off arrow stamped on the yellow chromate valve sleeve. Valve sleeve acts as an integral shut-off valve that allows connection and disconnection at zero pressure. When the sleeve is moved to shut off air flow, it automatically vents downstream allowing for disconnection at zero pressure and eliminating the risk of hose whip.
Construction:
  • Steel with brass hose barb end.
Specifications:
  • Meets ISO 4414 requirements for a controlled pressure release system.
  • Pressure rating: 300 PSI.
  • Temperature range (standard seals): -40 °F to 250 °F (-40 °C to 121 °C).
Safety Notes:
  • Not recommended for vacuum service.
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
Steel
Part Number		 Body Size Hose ID Flow Rating
at 100 PSI
DC2042LSE 1/4" 1/4" 37 CFM
DC2044LSE 1/4" 3/8" 37 CFM
DC2644LSE 3/8" 3/8" 70 CFM
DC1045LSE 1/2" 1/2" 150 CFM
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
