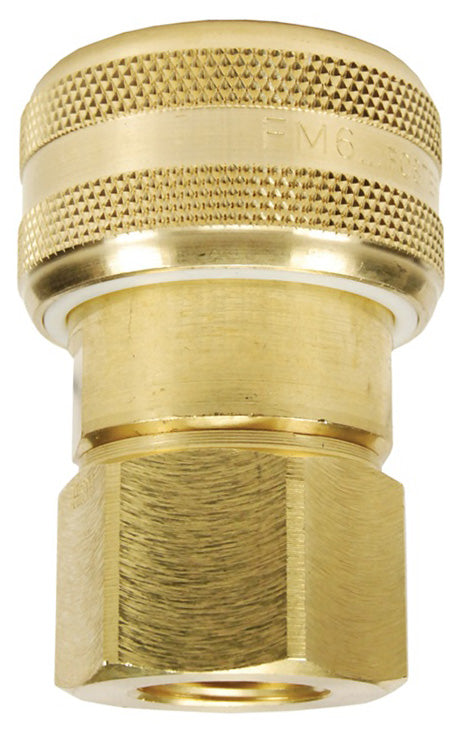

DC7024 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Automatic | 1/2" Female NPT x 3/4" Body Size | Brass

DC7024 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Automatic | 1/2" Female NPT x 3/4" Body Size | Brass

Save $2.61 Save $2.61
$43.32
$43.32 - $43.32
$43.32
$40.71
$40.71 - $40.71
$40.71

Air Chief Industrial Interchange Quick-Connect Couplers Air Chief industrial quick-connect couplers are the popular Industrial Interchange design and will interchange with many other makes. Couplers shut-off when disconnected. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DC7024 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Female ISO-6150 Series B Industrial Pneumatic QD Interchange, 1/2in Female NPT
Material(s): Brass
Features:
  • Automatic - push to connect.
  • Couplers shut off when disconnected.
  • Interchanges with many other manufacturer's designs.
Construction:
  • Brass
Specifications:
  • Interchanges with MIL Spec. MIL-C-4109F/A-A-59439
  • Pressure rating: 300 PSI
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
  • For air service only.
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
Brass
Part Number		 Body Size Female NPT Flow Rating
at 100 PSI
DC7024 3/4" 1/2" Female NPT 190 CFM
DC7026 3/4" 3/4" Female NPT 190 CFM
DC7028 3/4" 1" Female NPT 190 CFM
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
