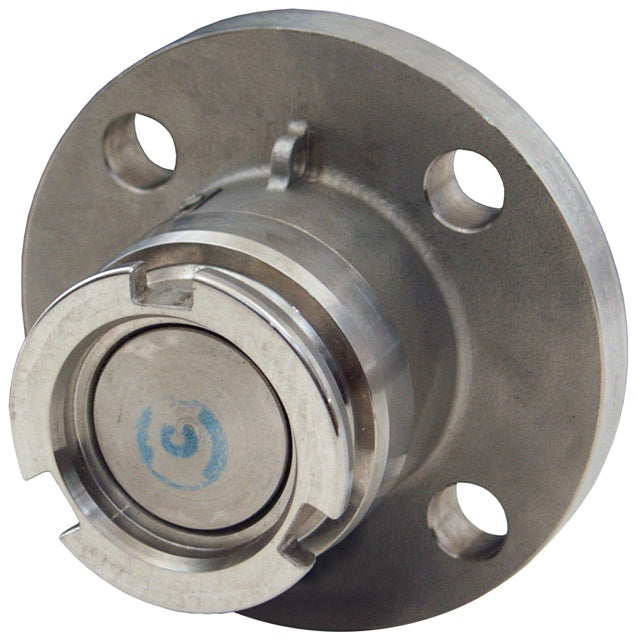

DDA150SSFL by Dixon Valve | MannTek Dry Disconnect Adapter | Tank Unit | 1-1/2" 150# ASA Flange x 70mm Body Size | 316 Stainless Steel

DDA150SSFL by Dixon Valve | MannTek Dry Disconnect Adapter | Tank Unit | 1-1/2" 150# ASA Flange x 70mm Body Size | 316 Stainless Steel

Save $110.43 Save $110.43
$993.83
$993.83 - $993.83
$993.83
$883.40
$883.40 - $883.40
$883.40

Dixon Valve
MannTek Dry Disconnect | Tank Unit | Adapter x 150# ASA Flange

Dry disconnect couplings are designed for the quick and spill free connection and disconnection of hoses and pipelines.

They are used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural and a wide variety of common caustic and specialty acids.
Specifications for Variant SKU: DDA150SSFL Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 70mm Male Manntek Dry Disconnect, 1-1/2in 150# Flange
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Compatibility & Interchange Data:
  • Compatible with Mann-Tek, Avery Hardoll and Todo-matic® and any other product produced according to NATO standard STANAG 3756.
Construction:
  • Standard seal supplied: FKM (FPM).
  • Aluminum adapter: aluminum poppet, stainless steel internal parts.
  • Stainless steel adapter: stainless steel poppet, stainless steel internal parts.
  • Brass / gunmetal 1 adapter: brass poppet, brass and stainless steel internal parts.
Features:
  • Adapter is usually installed on the tank or manifold.
  • Conical valve seat reduces the risk for piston blow out.
  • PTFE bearing between the piston shaft and the piston guide eliminate the risk for seizure.
  • Easy to handle - push and turn - free flow, turn and pull - closed.
  • Time saving - no need to drain hoses or pipe systems.
  • Economical - no loss or spillage of liquids at connection or disconnection.
  • Safety - the valve cannot be opened until the unit is coupled.
  • Environmental friendly - accidental spillage eliminated when properly used.
  • Safe and reliable - due to rugged construction.
  • Product life - uncomplicated design and high quality materials ensures long product life.
Specifications:
  • Produced according to NATO standard STANAG 3756 and ATOFINA SGM 2049.TUY.C.
  • Working pressure is based on PSI at ambient temperature 70°F.
    • Aluminum: 230 PSI, up to 4"
    • Brass/Gunmetal1: 230 PSI, up to 4"
    • Stainless Steel: 360 PSI
Use:
  • Use with composite (Polyeten PE-HD 300) caps for protection against corrosion; caps withstand hot and cold environments.
316 Stainless Steel
Part Number		 Aluminum
Part Number		 Brass / Gunmetal*
Part Number		 Female
NPT		 Body Size
DDA075SSFL 3/4" 56mm
DDA100SSFL DDA100ALFL DDA100BRFL 1" 56mm
DDA150SSFL DDA150ALFL DDA150BRFL 1-1/2" 70mm
DDA200SSFL DDA200ALFL DDA200BRFL 2" 70mm
DDA300SS105FL DDA300AL105FL DDA300GM105FL 3" 105mm
DDA300SSFL DDA300ALFL DDA300GMFL 3" 119mm
DDA400SSFL DDA400ALFL DDA400GMFL 4" 164mm
DDA600SSFL DDA600ALFL - 6" 238mm
DDA800SSFL - - 8" 272mm

*Produced to U.S. government bronze specification G
