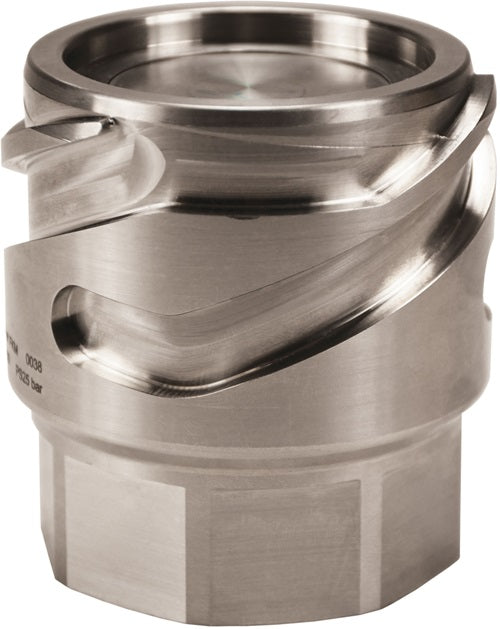

DDEA150SS by Dixon Valve | Dry Evotek Adapter | 1-1/2" Female NPT | 89mm Body Size | Stainless Steel

DDEA150SS by Dixon Valve | Dry Evotek Adapter | 1-1/2" Female NPT | 89mm Body Size | Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Valve
Dry Evotek Adapter

Specifically designed for use in the chemical industry.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DDEA150SS Dixon
Series: Evotek
Shape (Orientation): Straight
Material(s): Stainless Steel
Features:
  • Rotating the coupling 120° clockwise opens the valves where the pressure engagement between hose and tank unit ensures a strong connection.
  • Low connecting forces even against pressure.
  • Ergonomic handle on 1-1/2" and 2" sizes.
  • Good transmission ratio in the cam curve.
  • Wide range of chemical resistance due to high-quality material selection.
  • Minimized spillage during de-coupling.
Materials:
  • Body: stainless steel 1.4404.
  • Handle: PP polypropylene; 1" does not come with a handle.
  • O-rings: FPM, NBR, EPDM, FFKM.
  • Standard seal: FKM.
Specifications:
  • Working pressure: 360 PSI at ambient temperature 70°F (21°C).
  • PED 2014/68/EU 4.3.
  • ATEX 2014/34/EU Category 3G.
Dry Evotek Adapters | Female NPT
Part Number Female NPT Body Size
DDEA100SS 1" 59.5mm
DDEA150SS 1-1/2" 89mm
DDEA200SS 2" 106mm
Dry Evotek Couplers | Female NPT
Part Number Female NPT Body Size
DDEC100SS 1" 59.5mm
DDEC150SS 1-1/2" 89mm
DDEC200SS 2" 106mm
