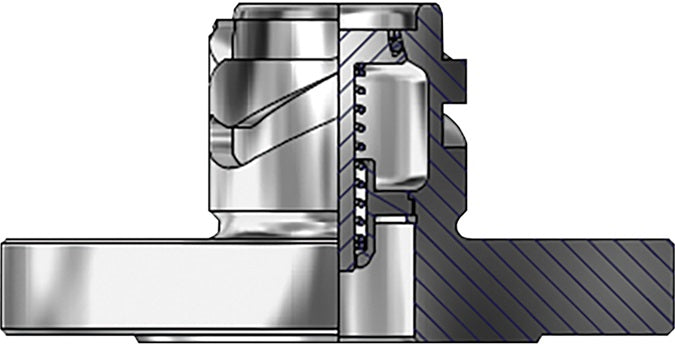

DDEA200SSFL by Dixon Valve | Dry Evotek Adapter | 2" 150# Flange | 106mm Body Size | Stainless Steel
DDEA200SSFL by Dixon Valve | Dry Evotek Adapter | 2" 150# Flange | 106mm Body Size | Stainless Steel
DDEA200SSFL by Dixon Valve | Dry Evotek Adapter | 2" 150# Flange | 106mm Body Size | Stainless Steel

DDEA200SSFL by Dixon Valve | Dry Evotek Adapter | 2" 150# Flange | 106mm Body Size | Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Valve
Dry Evotek Adapter

Specifically designed for use in the chemical industry.
Specifications for Variant SKU: DDEA200SSFL Dixon
Series: Evotek
Shape (Orientation): Straight
Material(s): Stainless Steel
Features:
  • Rotating the coupling 120° clockwise opens the valves where the pressure engagement between hose and tank unit ensures a strong connection.
  • Low connecting forces even against pressure.
  • Ergonomic handle on 1-1/2" and 2" sizes.
  • Good transmission ratio in the cam curve.
  • Wide range of chemical resistance due to high-quality material selection.
  • Minimized spillage during de-coupling.
Materials:
  • Body: stainless steel 1.4404.
  • Handle: PP polypropylene; 1" does not come with a handle.
  • O-rings: FPM, NBR, EPDM, FFKM.
  • Standard seal: FKM.
Specifications:
  • Working pressure: 360 PSI at ambient temperature 70°F (21°C).
  • PED 2014/68/EU 4.3.
  • ATEX 2014/34/EU Category 3G.
Dry Evotek Adapters | 150# Flange
Part Number Female NPT Body Size
DDEA100SSFL 1" 59.5mm
DDEA150SSFL 1-1/2" 89mm
DDEA200SSFL 2" 106mm
Dry Evotek Couplers | 150# Flange
Part Number Female NPT Body Size
DDEC100SSFL 1" 59.5mm
DDEC150SSFL 1-1/2" 89mm
DDEC200SSFL 2" 106mm
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
