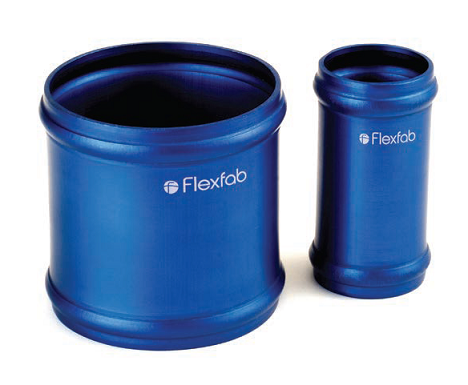

DEA-36519-3000 FlexFab Series 36519 Beaded Connector - 3.00" OD - Blue - 3"

DEA-36519-3000 by FlexFab | Series 36519 | Beaded Connector | 3.00" OD | Blue | 3" Overall Length

Save $20.28 Save $20.28
$70.99
$70.99 - $70.99
$70.99
$50.71
$50.71 - $50.71
$50.71

Flexfab Industrial Hose - Series 36519 - Beaded Connectors
Specifications for Variant SKU: DEA-36519-3000 Flexfab
Series: Series 36519
Shape (Orientation): Straight
Material(s): Anodized Aluminum
Overview:
  • Anodized Aluminum Blue Connectors
Specifications:
  • Bead height per AS5131 specification
  • Meets anodized aluminum specification MIL-A8625
Applications:
  • For coolant, charge air connector, or marine applications
  • Anodized aluminum resists salt water damage
Part Number Outside Diameter Bead Height(AS5131) Overall LengthInches WeightLBS
DEA-36519-0625 0.63" .047" - .087" 3.00" 0.50 lbs
DEA-36519-0750 0.75" .047" - .087" 3.00" 0.50 lbs
DEA-36519-1000 1.00" .047" - .087" 3.00" 0.50 lbs
DEA-36519-1250 1.25" .047" - .087" 3.00" 0.50 lbs
DEA-36519-1500 1.50" .047" - .087" 3.00" 0.50 lbs
DEA-36519-1750 1.75" .047" - .087" 3.00" 0.50 lbs
DEA-36519-2000 2.00" .047" - .087" 3.00" 0.50 lbs
DEA-36519-2250 2.25" .047" - .087" 3.00" 0.50 lbs
DEA-36519-2500 2.50" .047" - .087" 3.00" 0.50 lbs
DEA-36519-2750 2.75" .047" - .087" 3.00" 0.50 lbs
DEA-36519-3000 3.00" .047" - .087" 3.00" 0.50 lbs
DEA-36519-3500 3.50" .047" - .087" 3.00" 0.50 lbs
DEA-36519-4000 4.00" .047" - .087" 3.00" 0.50 lbs
*Specifications for reference only
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
