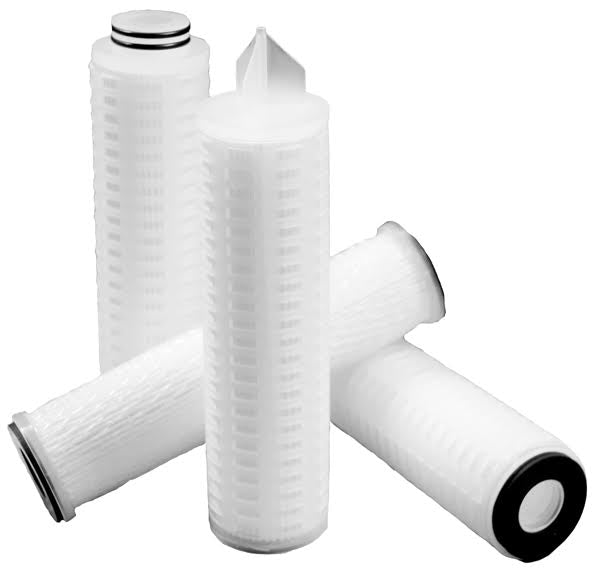

DF-PESF3E6S Dixon Valve PES Membrane Element - Hard Cage/226/Fin - .45 Micron - 10" Length - Polyethersulfone/Polypropylene/Silicone (Case of 6)

DF-PESF3E6S Dixon Valve PES Membrane Element - Hard Cage/226/Fin - .45 Micron - 10" Length - Polyethersulfone/Polypropylene/Silicone (Case of 6)

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings PES Membrane Element

Package Quantity: 6 EA

Specifications for Variant SKU: DF-PESF3E6S Dixon
Features:
  • FDA title 21 compliant
  • Cartridge elements are constructed in a clean room environment
  • Cartridge elements have excellent dirt holding capacity with low flow resistance
  • Cartridge elements are free of surfactants, resins, binders, and adhesives
  • Low protein binding and chemical compatibility
  • Naturally hydrophilic media does not need wetting before use
Materials:
  • Cartridge element: polyethersulfone; core material: polypropylene
  • Gasket/O-ring: silicone
Specifications:
  • Maximum differential pressure: 45 PSID
  • Maximum operating pressure: 45 PSID
Part Number Diameter Element Length Style Micron
DF-PESE3E4S 2.65" OD/ 1" Center ID 10" Hard Cage/222/Closed .22
DF-PESE5E4S 2.65" OD/ 1" Center ID 20" Hard Cage/222/Closed .22
DF-PESF5E4S 2.65" OD/ 1" Center ID 20" Hard Cage/222/Closed .45
DF-PESE7E4S 2.65" OD/ 1" Center ID 30" Hard Cage/222/Closed .22
DF-PESF7E4S 2.65" OD/ 1" Center ID 30" Hard Cage/222/Closed .45
DF-PESE3E6S 2.65" OD/ 1" Center ID 10" Hard Cage/226/Fin .22
DF-PESF3E6S 2.65" OD/ 1" Center ID 10" Hard Cage/226/Fin .45
DF-PESE5E6S 2.65" OD/ 1" Center ID 20" Hard Cage/226/Fin .22
DF-PESF5E6S 2.65" OD/ 1" Center ID 20" Hard Cage/226/Fin .45
DF-PESE7E6S 2.65" OD/ 1" Center ID 30" Hard Cage/226/Fin .22
