DHS238-300 by Dixon Valve | Nylon Protective Sleeve | 2.38" Nominal ID | 3.88" Outside Flat | 300ft

Name: DHS238-300 by Dixon Valve | Nylon Protective Sleeve | 2.38" Nominal ID | 3.88" Outside Flat | 300ft
Brand: Dixon
SKU: DHS238-300 Dixon
Price: 584.11 USD
Availability: InStock

Save $73.01

$657.12

$657.12 - $657.12

$657.12

$584.11

$584.11 - $584.11

$584.11

Dixon Valve & Coupling
Maintenance and Repair | Nylon Protective Sleeve (MSHA Accepted)

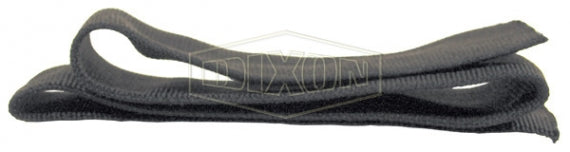

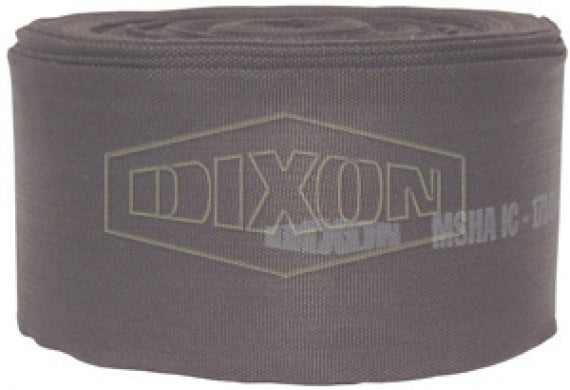

Woven tubular sleeving, for use as a protective covering on hydraulic and industrial hose.

Not continous roll/has splices.

Quantity

Specifications for Variant SKU: DHS238-300 Dixon

Features:
Tight weave of seamless tubular sleeving helps dispense the flow of fluid in a ruptured hose.
Approval:
MSHA accepted Withstands temperatures up to 275°F (135°C), passes flammability tests.

100ft Roll Part Number	300ft Roll Part Number	Nominal ID	Outside Flat
DHS90-100	DHS90-300	0.90"	1.50"
DHS100-100	DHS100-300	1.00"	1.66"
DHS106-100	DHS106-300	1.13"	1.88"
DHS122-100	DHS122-300	1.25"	2.13"
DHS142-100	DHS142-300	1.42"	2.50"
DHS175-100	DHS175-300	1.78"	2.88"
DHS181-100	DHS181-300	1.91"	3.00"
DHS219-100	DHS219-300	2.18"	3.63"
DHS238-100	DHS238-300	2.38"	3.88"
DHS263-100	DHS263-300	2.65"	4.25"
DHS288-100	DHS288-300	2.86"	4.75"
DHS366-100	DHS366-300	3.65"	5.88"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
