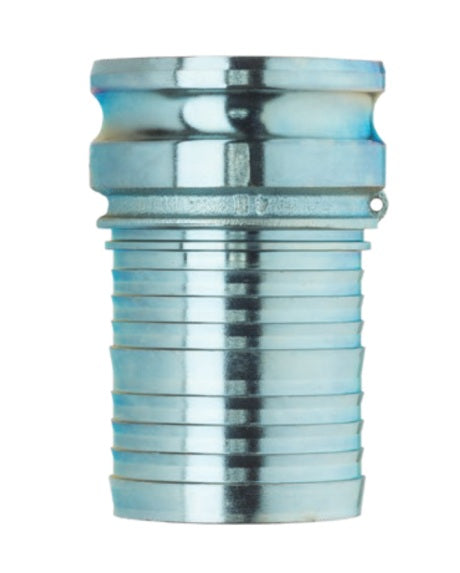

DI-E400 by Kuriyama | DI-E Series | Part E | Cam & Groove FItting | Tri-Couple | 4" Adapter x 4" Hose Barb | Ductile Iron

Save $19.79

$73.60

$73.60 - $73.60

$73.60

$53.81

$53.81 - $53.81

$53.81

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | DI-E Series | Part E | Adapter x Hose Barb | Ductile Iron

Kuriyama Camlock Couplings are intended for use in many industrial applications.

Nylon camlocks are used in industrial and agricultural applications where heat and moisture are of concern.

Specifications for Variant SKU: DI-E400 Kuriyama
Series:	DI-E Series
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	4in Male Cam & Groove, 4in Hose Barb
Material(s):	Ductile Iron

What are the Applications?

Used in industrial applications.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Coupling ID specially designed for maximum flow of product.

What are the Materials?

Zinc plated ductile iron material.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.

Part Number	Size (in)	PSI Rating at 70°F	Weight Each (lbs)
DI-E400*	4"	150 PSI	5.84 lbs

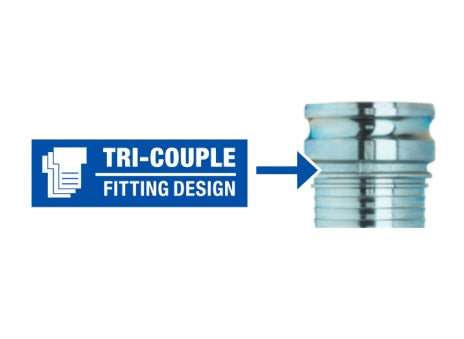

* Tri-Couple Fitting Design.
