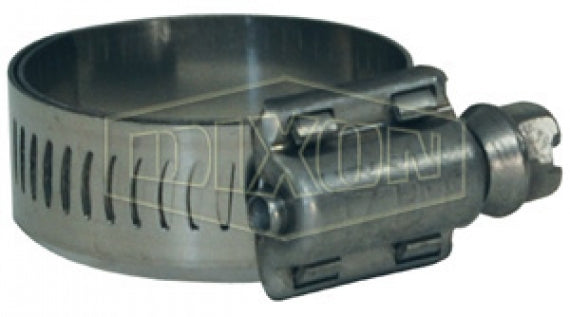

DLS9428 by Dixon Valve | Style DLS | Aero-Seal® Liner Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 1-5/16" to 2-1/4" | Stainless Steel Band | 410 Stainless Steel Screw | Box of 10

Save $3.93

$35.40

$35.40 - $35.40

$35.40

$31.47

$31.47 - $31.47

$31.47

Dixon Valve
Aero-Seal® Liner Worm Gear Clamps | Style DLS

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: DLS9428 Dixon \| 10 \|
Brand:	Aero-Seal
Series:	Style DLS
Material(s):	Stainless Steel, 410 Stainless Steel
Clamp Width:	0.5
Minimum Clamp I.D.:	1.3125
Maximum Clamp I.D.:	2.25

Features:
The integral extension of the band as a liner (no rivets or welds) protects soft surface hose (silicone and others) from damage caused by extrusion or shearing through the band slots Screw design: 5/16" hex slotted hex head
Materials:
Style DL Band, Saddle, Housing: Stainless Steel. Screw: Plated Carbon Steel Screw. Style DLS Band and Housing: Stainless Steel. Screw: 410 Stainless Steel Screw.

Style DL Part Number	Style DLS Part Number	Band Width	Hose OD
Style DL Part Number	Style DLS Part Number	Band Width	From	To
DL9206	DLS9406	1/2"	7/16"	25/32"
DL9208	DLS9408	1/2"	1/2"	29/32"
DL9210	DLS9410	1/2"	9/16"	1-1/16"
DL9212	DLS9412	1/2"	11/16"	1-1/4"
DL9216	DLS9416	1/2"	13/16"	1-1/2"
DL9220	DLS9420	1/2"	13/16"	1-3/4"
DL9224	DLS9424	1/2"	1-1/16"	2"
DL9228	DLS9428	1/2"	1-5/16"	2-1/4"
DL9232	DLS9432	1/2"	1-9/16"	2-1/2"
DL9236	DLS9436	1/2"	1-13/16"	2-3/4"
DL9240	DLS9440	1/2"	2-1/16"	3"
DL9244	DLS9444	1/2"	2-5/16"	3-1/4"
DL9248	DLS9448	1/2"	2-9/16"	3-1/2"
