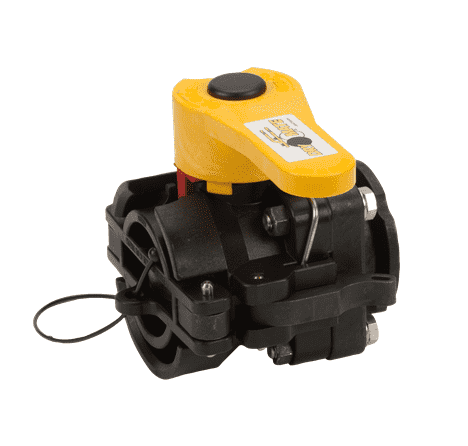

DM200DCF Banjo Manifold Dry Disconnect Valve - 2" Flanged Female Dry-Mate w/FKM (viton type) Seals - Opening Thru Ball: 1-1/2" - 100 PSI

DM200DCF by Banjo | Manifold Dry Disconnect Valve | 2" Flanged Female Dry-Mate with FKM (Viton) Seals | Opening Thru Ball: 1-1/2" | 100 PSI

Save $21.31 Save $21.31
$191.80
$191.80 - $191.80
$191.80
$170.49
$170.49 - $170.49
$170.49

Banjo Manifold Flange Connections - Manifold Dry Disconnect

Specifications for Variant SKU: DM200DCF Banjo
Shape (Orientation): Straight
Ends Configuration: 2in Standard Port Manifold Flange, 2in Female Dry-Mate Dry Disconnect
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • Lightweight
  • Unrestricted flow
  • Minimal fluid spillage
  • Easy to use
  • Economical
  • Reduces risk of exposure
  • Wide range of chemical resistance
  • Cannot be uncoupled in open position
  • Handles cannot be opened after male and female are separated
  • Note: Male & female sold separately.

Part Number Description Opening Thru Ball Max PSI
DM200ACF 2" Flanged Male Dry-Mate w/ FKM (viton type) Seals 1-1/2" 100 PSI
DM200DCF 2" Flanged Female Dry-Mate w/FKM (viton type) Seals 1-1/2" 100 PSI
DM300ACF 3" Flanged Male Dry-Mate w/FKM (viton type) Seals 3" 150 PSI
DM300DCF 3" Flanged Female Dry-Mate w/ FKM (viton type) Seals 3" 150 PSI

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
